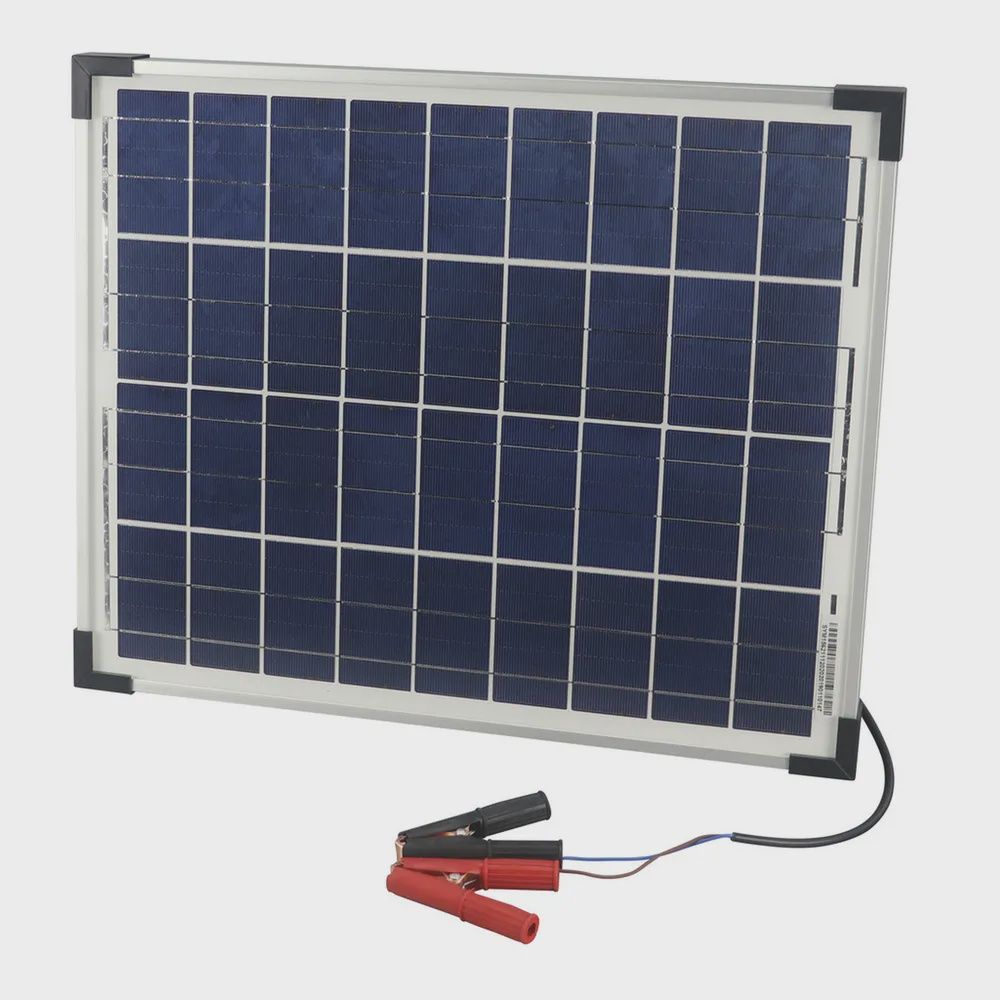

12V 20W Solar Panel with Clips

Overview

High quality solar panel with high efficiency and smaller footprint compared to regular monocrystalline models. This is an easy way to keep your 12V batteries topped up and ready to go on your caravan, farm equipment, spare car, or the shed out the back. The dust and weather-resistant panel features a robust frame and is supplied with 3m long leads terminated with battery clips.

• Blocking diode fitted: Suitable for direct connection to your battery as a trickle charger (note the minimum battery capacity).
• Can also function as a low current charger to replace a load or current drain on the battery.
• Charge controller recommended: Prevent over-charging of the battery when the panel output exceeds the routine circuit load.

Minimum battery capacity: 200Ah.

Specifications

Solar Panel

• Solar panel type: Polycrystalline
• Open Circuit Voltage: 22.0 V
• Short Circuit Current: 1.21 A
• Voltage at Power Max: 17.4 V
• Current at Power Max: 1.16 A
• Power Connector: Alligator Clips

DC Voltage Rating

• DC Voltage: 12.0 V

Power Rating

• Maximum Power: 20.0 W

Product Dimensions

• Width: 356.0 mm
• Height: 435.0 mm
• Depth: 25.0 mm
• Weight: 1.8 kg

Packaged Dimensions

• Packaged Dimensions: 45.0 cm (Length) x 36.9 cm (Width) x 3.8 cm (Height)
