ANT-BH-0M-C BLACKHAWK CEILING DOME
$115.95
4 payments of $28.99 with
Price incl. GST (10%) $10.54
In stock: 3 available
1
Save this product for later

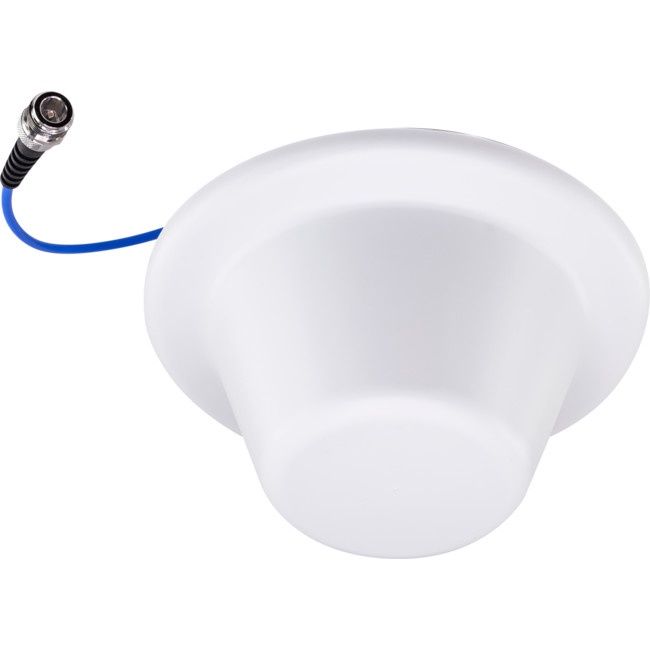

ANT-BH-0M-C BLACKHAWK CEILING DOME
Product Details
Brand: BLACKHAWK
Weight: 0.25 kg
Features
- 2.5 dBi gain across lower bands (698-960 MHz)
- 3.5 dBi gain across upper bands (1710-2700 MHz)
- ABS plastic and aluminium construction
- Threaded bulkhead mount for ceiling installation
- Short cable tail with N female connector
- Ideal for Cel-Fi GO repeater applications for marine and caravan
Compatibility and Applications
This antenna is perfect for Telstra Next-G and 4GX networks, as well as Optus and Vodafone 3G/4G.
Operating on all 3G and 4G frequencies in Australia and abroad, this high-grade antenna is suitable for a wide range of residential, commercial, and industrial mobile broadband applications on any mobile network.
Designed specifically for Cel-Fi repeater systems, the indoor dome antenna ensures consistently distributed mobile phone service when mounted to the ceiling of your building.
Compact and Unobtrusive Design
With a design similar to a smoke alarm, the antenna is compact and visually unobtrusive, making it ideal for indoor environments.
The Blackhawk Omni Ceiling Antenna delivers a 360° beamwidth, ensuring complete internal coverage for voice and data applications.
Main Technical Specifications
| Specification | Details |
|---|---|
| Model | ANT-BH-OM-C |
| Frequency Range | 698-960 MHz / 1710-2700 MHz |
| VSWR | ≤2.0:1 / ≤1.8:1 |
| Input Impedance | 50Ω |
| Gain | 2.5 / 3.5 dBi |
| Polarization Type | Vertical Linear |
| Horizontal Beamwidth | 360° (Omnidirectional) |
| Vertical Beamwidth | 90 / 55° |
| F/B Ratio | ≥23dB |
| Max Power | 50W |
| Lightning Protection | DC ground |
| Connector Type | N Female |
| RG58/U Cable | Short tail cable |
| Weight | 0.25kg |
| Dimensions | 210mm × 180mm × 44mm |
| Radome Material | ABS plastic - White |
| Radiator Material | Brass and aluminium |
| Working Temperature | -40°C ~ 65°C |
This antenna is a reliable solution for marine, caravan, and indoor applications, ensuring seamless connectivity and optimal performance.
