ANT-BH-YG-LOG-LPDA-10- BLACKHAWK 698-4000Mhz 12/14Dbi- 5G Ready 10M Lmr240 SMA-M

Product Overview

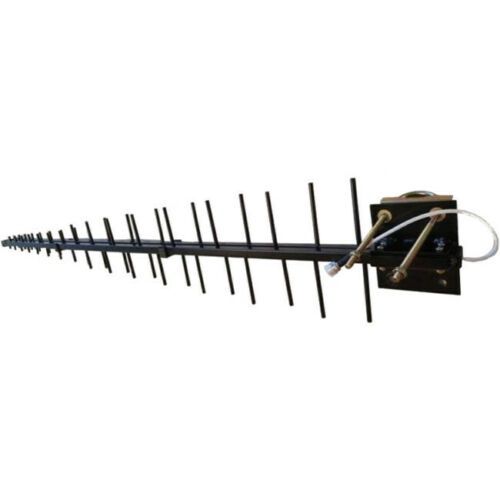

The ANT-BH-YG-LOG-LPDA-10 is a BLACKHAWK LPDA Antenna designed to operate across frequencies ranging from 698-4000MHz with 12/14 dBi gain. This antenna is 5G Ready and includes a 10M LMR240 SMA-M to N-M lead, making it versatile for various applications.

Key Features

• Wide Compatibility: Operates on all 3G, 4G, and 5G frequencies in Australia.
• High-Grade Performance: Suitable for residential, commercial, and industrial mobile broadband applications.
• Ideal for Cel-Fi Repeater Systems: Perfect external antenna for enhancing signal strength.
• Advanced Design: A Log Periodic Dipole Antenna (LPDA) offering exceptional wide-band performance by phasing a series of elements together for high gain and good tuning across the entire cellular frequency range.

Benefits of LPDA Antennas

• Comprehensive Coverage: Covers all frequencies with the high gain of a Yagi antenna, meeting the demands of rural and remote areas.
• Universal Compatibility: Works seamlessly with any mobile phone network in Australia without compatibility concerns.
• Durable Construction: Ruggedised for Australian conditions, fully welded and powder-coated aluminium design ensures long-lasting performance.

Technical Features

Gain Across Frequency Bands:

• 12 dBi: Lower bands 698-960 MHz
• 14 dBi: Middle bands 1710-2700 MHz
• 12 dBi: Upper bands 3300-4000 MHz

Build and Design:

• Powder-Coated Aluminium: Fully welded for durability.
• Stainless Steel Mounting Clamp: Included for secure installation.
• Pre-Terminated Connector: 30 cm tail with N Female connector.

Applications:

• Perfect for high-speed 3G and 4G LTE applications.
• Ideal for Telstra Next-G and 4GX networks, Optus, and Vodafone 3G/4G & 5G.

Electrical Specifications

• Frequency Range: 698-960 / 1710-2700 / 3300-4000 MHz
• Input Impedance: 50 Ω
• Peak Gain: 12 / 14 dBi
• VSWR: ≤ 2.5:1 / 1.8:1
• Polarisation: Vertical, linear
• Beam-width: Horizontal 55 / 42°, Vertical 46 / 34°
• Maximum Input Power: 50 W
• Lightning Protection: DC Ground

Physical Specifications

• Radiator Material: Fully welded aluminium with black powder coat.
• Mounting: Stainless steel pole mount for 30-50 mm poles.
• Dimensions: 1240 x 200 x 60 mm
• Packing Dimensions: 1290 x 210 x 90 mm
• Weight: 2.2 kg
• Rated Wind Velocity: Up to 192 km/h
• Operating Temperature: -40 to +65°C

This antenna is engineered to deliver reliable high-speed connectivity across various environments, making it a trustworthy solution for users seeking robust performance and wide-band coverage.
