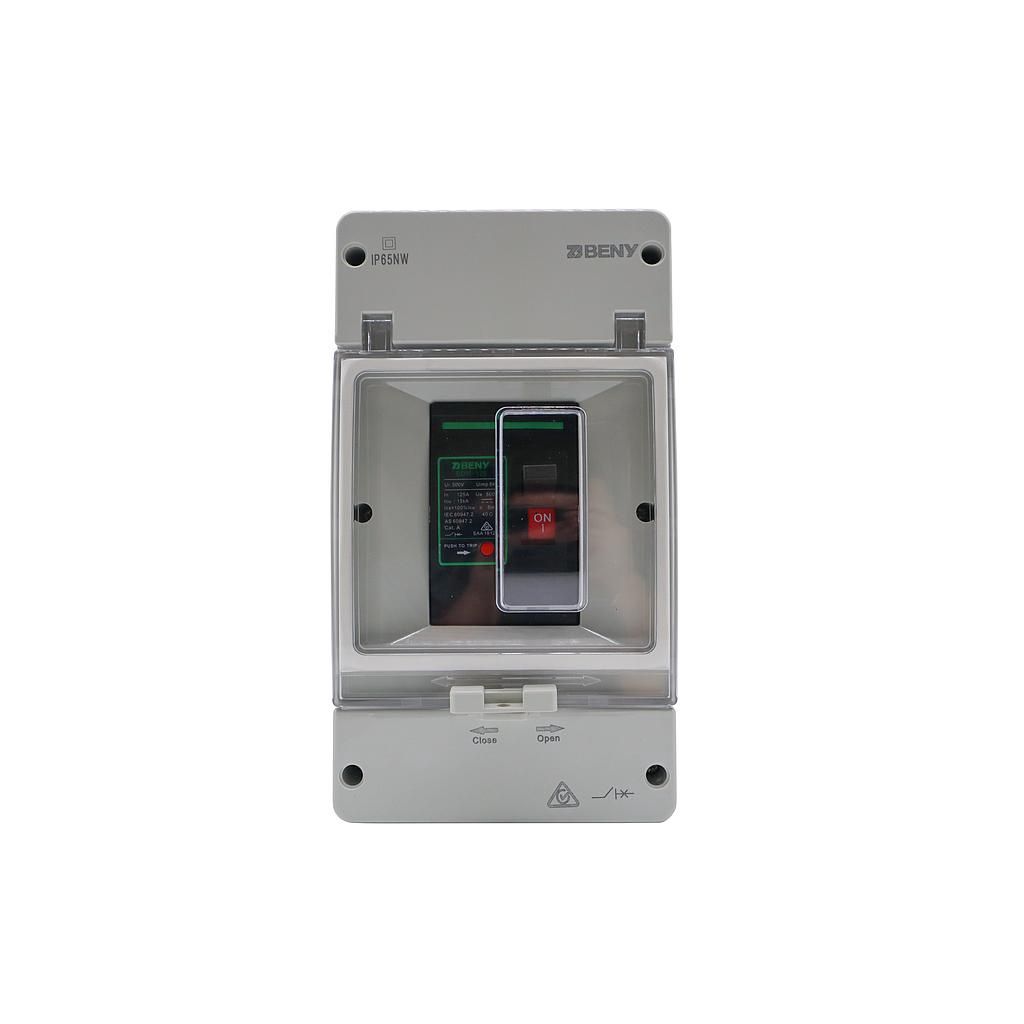

BDM-125 BENY BDM 125A DC CIRCUIT BREAKER

ZJ BENY BDM series PV DC moulded case circuit breaker (MCCB) is primarily designed for large solar power systems. It is ideal for applications such as solar DC combiner boxes, inverters, and DC power distribution cabinets. With a rated voltage up to 500V DC and current up to 250A, it provides overload protection and short circuit protection.

Key Features:

• IP65 UV resistant enclosure for both outdoor and indoor installations.
• Complies with AS60947.2 and IEC 60947-2 standards.
• Offers protection functions: overload, short circuit, and infrequent operation.
• High short circuit/breaking capacity.
• Equipped with a lockable transparent cover.
• Operates at a rated voltage up to 500V DC.
• Tested to withstand extreme conditions from -40°C to +85°C.
• Available in rated currents of 125A, 160A, and 250A.

Applications:

This circuit breaker is suitable for a wide range of applications, including:

• Marine
• RV's
• Caravans
• Off-Grid Systems
• Tiny Houses
• Cabins

More About ZJ Beny:

BENY New Energy, established in 2011, is a global leader in manufacturing protective components for the renewable energy industry. With extensive expertise, the company adds value across the solar supply chain, serving homeowners, businesses, electricity producers, and renewable energy investors worldwide.

In addition to protective components, BENY is a leading provider of EV chargers and microinverters, leveraging over 30 years of experience in power electronics technology. Their integrated charging solutions are known for high protection capability, premium efficiency, and other user-friendly innovative technologies.
