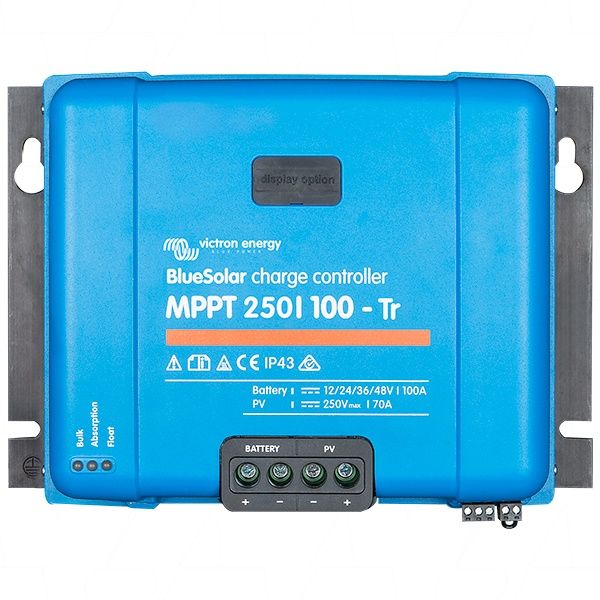

BLUESOLAR MMPT 250/100 TR VE

BlueSolar Charge Controllers MPPT 250/100-Tr VE.Can

Key Features:

• 12V/24V/36V/48V auto-select battery voltage
  Note: Software tool required for 36V.
• 100A rated charge current
• Nominal PV power:
  • 1450W @12V
  • 2900W @24V
  • 4350W @36V
  • 5800W @48V
• Automatic load disconnect
• 99% peak efficiency
• Comprehensive protection:
  • Reverse polarity (fuse) protection
  • Output short circuit protection
  • Over-temperature protection

Bluetooth Smart built-in

The wireless solution to set-up, monitor, update, and synchronise SmartSolar Charge Controllers.

Ultra-fast Maximum Power Point Tracking (MPPT)

• Especially effective under clouded skies, where light intensity changes continuously.
• Improves energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.

Advanced Maximum Power Point Detection in Partial Shading Conditions

• In partial shading, multiple maximum power points (MPP) may exist on the power-voltage curve.
• Traditional MPPTs may lock onto a local MPP, which is not optimal.
• The innovative SmartSolar algorithm ensures maximum energy harvest by locking onto the optimum MPP.

Outstanding Conversion Efficiency

• No cooling fan required.
• Maximum efficiency exceeds 99%.

Flexible Charge Algorithm

• Fully programmable charge algorithm (refer to the software page on our website).
• Includes eight pre-programmed algorithms, selectable via a rotary switch (details available in the manual).

Extensive Electronic Protection

• Over-temperature protection and power derating when temperatures are high.
• PV protection:
  • Short circuit
  • Reverse polarity
  • Reverse current

Internal Temperature Sensor

• Automatically compensates absorption and float charge voltage based on temperature.

Optional External Battery Voltage and Temperature Sensing via Bluetooth

• Use a Smart Battery Sense or BMV-712 Smart Battery Monitor to communicate battery voltage and temperature to one or more SmartSolar Charge Controllers.

Fully Discharged Battery Recovery Function

• Initiates charging even when the battery is discharged to zero volts.
• Reconnects to a fully discharged Li-ion battery with an integrated disconnect function.

Additional Features:

• VE.Direct: Provides a wired data connection to a Color Control GX, other GX products, PC, or other devices.
• Remote on-off: Allows connection to devices such as a VE.BUS BMS.
• Programmable relay: Can be configured (via smartphone, for example) to trigger on alarms or other events.
• Optional LCD display available for enhanced monitoring and control.
