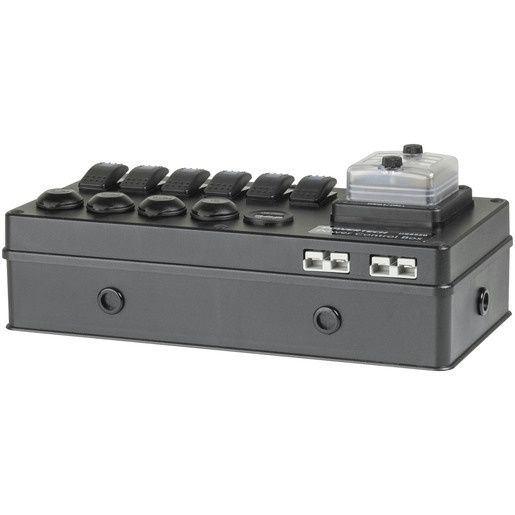

BOX DC CNTRL 12-24V W/SW+SB50+CIG+USB

This Powertech explorer control box is packed with features that cater to all your 12-volt needs, housed in a sturdy plastic package. Its durable yet easy-to-work nylon case allows for effortless addition of extra items that fit within the available space. The simplicity extends beyond its exterior, as most of the internal wiring utilizes straightforward push-on 6mm spade connectors.

Measuring at 355x180x138mm (including the height of the fuse block), the case boasts a sleek design that can be easily mounted using the supplied hardware.

Specifications

• Supplied wire gauges: 10AWG and 14AWG Standard Fittings (feel free to add other items from our extensive range).
• Built-in weatherproof 6-way fuse block: 100A total max, with individual fuses for each outlet (supplied with 1 x 5A, 3 x 15A, 1 x 20A, 2 x 30A blade-type fuses).
• Weatherproof cigarette-lighter type DC sockets: 3 x 20 Amp.
• On-Off power switches: 6 x 20A switches with blue LED indicators (3 connections).
• Blue LED digital voltage monitor: Voltage range from 6V to 30V.
• Dual Port USB socket: Includes 1A and 2.1A outputs.
• High current connectors: 2 x 50A connectors for convenient solar and battery connection.
• Internal Bus Bars: 2 x 4-way bus bars for additional connections (150A 32V DC max).
• Grommeted holes: 6 x holes for fixed power cable entry.

This control box truly simplifies your setup while providing robust functionality and reliability.
