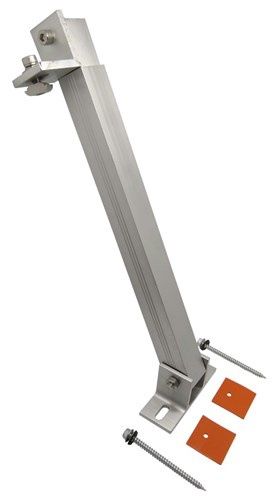

BRKT SOLAR ECOTECH BACK LEG 15-30DEG EA

HS8812 Description

A universal and code compliant mounting system for attaching solar panels to the roof of your property. Designed for use with either tiled or tin roofs, accommodating any slope from 0-60° (flat or pitched), and fully cyclone rated even for wind region D.

The easy insertion modules allow for effortless installation — no need to slide each attachment along the rail; they slot in easily at the desired spot. This system is compatible with 35mm thick modules and offers a full range of components.

Features

• Cyclone proof to Wind Region D (installation guide must be strictly adhered to)
• Vertical or horizontal panel mounting
• Suits any solar panel width, optimized for 800-825mm width
• Suitable for aluminium framed panels
• 10-year materials warranty
• AS/NZS 1170 approved
• Roof slope: up to 60°
• Wind load: 80m/s
• Snow load: 1.4kNm²

Rails

Sold individually, 2 rails required for each row of solar panels:

• 2560mm Rail: For 3x 800-825mm width panels in portrait layout (HS-8800)
• 3405mm Rail: For 4x 800-825mm width panels in portrait layout (HS-8801)
• 4200mm Rail: For 5x 800-810mm width panels in portrait layout (HS-8802)

Rail Splice:

• HS-8803: Sold individually, required to join two lengths of rail in line

End Clamps:

• 35mm, HS-8804: Sold individually, required to clamp the end solar panels' outer edges to the rails

Mid Clamp:

• 35mm, HS-8805: Sold individually, required to clamp down the edges of two adjacent solar panels

Roof Hooks:

• Tile Roof Hook, HS-8806: Sold individually, attaches the rail to the building frame underneath a tiled roof
• Tin Roof Hook, HS-8807: Sold individually, attaches the rail to the building frame underneath a tin roof

Adjustable Tilt Legs

Sold individually, required for mounting onto a flat roof to obtain the correct panel angle. Each back leg requires a front leg to match with it:

• Adjustable Tilt Front Leg, HS-8810
• Adjustable Tilt Back Leg 10-15°, HS-8811
• Adjustable Tilt Back Leg 15-30°, HS-8812
• Adjustable Tilt Back Leg 30-60°, HS-8813

Specifications

• Packaged Volume: 23.26L
• Packaged Weight: 7.59kg
• Packaged Length: 51.8cm
• Packaged Width: 21.8cm
• Packaged Height: 20.6cm
