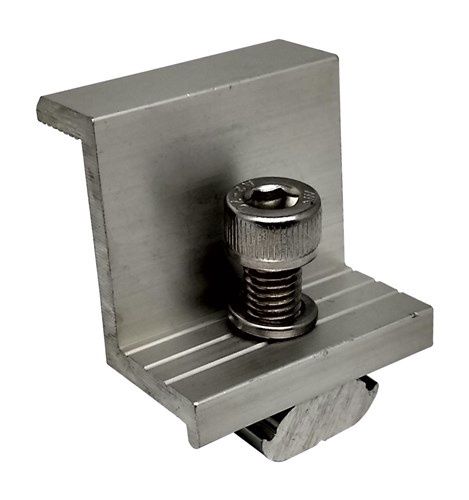

BRKT SOLAR ECOTECH END CLAMP 35MM EA

HS8804

A universal and code-compliant mounting system for attaching solar panels to the roof of your property. Designed for use with both tiled and tin roofs, it accommodates any slope from 0-60° (flat or pitched) and is fully cyclone-rated, even for Wind Region D. The system features easy insertion modules, allowing attachments to be slotted directly into the desired position without sliding them along the rail. It is specifically designed for use with 35mm thick modules, and a full range of components is available.

Key Features:

• Cyclone proof to Wind Region D (installation guide must be strictly adhered to)
• Supports vertical or horizontal panel mounting
• Compatible with any solar panel width, optimized for 800-825mm width
• Suitable for aluminium framed panels
• 10-year materials warranty
• AS/NZS 1170 approved
• Roof slope compatibility: up to 60°
• Wind load: 80m/s
• Snow load: 1.4kNm²

Rails:

Rails are sold individually. Two rails are required for each row of solar panels.

• 2560mm Rail (HS-8800): For 3x 800-825mm width panels in portrait layout
• 3405mm Rail (HS-8801): For 4x 800-825mm width panels in portrait layout
• 4200mm Rail (HS-8802): For 5x 800-810mm width panels in portrait layout

Rail Splice (HS-8803):

• Sold individually. Required to join two lengths of rail in line.

Accessories:

• End Clamps, 35mm (HS-8804):
  Sold individually. Required to clamp the end solar panels' outer edges to the rails.

• Mid Clamp, 35mm (HS-8805):
  Sold individually. Required to clamp down the edges of two adjacent solar panels.

• Tile Roof Hook (HS-8806):
  Sold individually. Attaches the rail to the building frame underneath a tiled roof.

• Tin Roof Hook (HS-8807):
  Sold individually. Attaches the rail to the building frame underneath a tin roof.

Adjustable Tilt Legs:

These legs are sold individually and are required for mounting onto a flat roof to obtain the correct panel angle. Each back leg requires a front leg to match with it.

• Adjustable Tilt Front Leg (HS-8810)
• Adjustable Tilt Back Leg 10-15° (HS-8811)
• Adjustable Tilt Back Leg 15-30° (HS-8812)
• Adjustable Tilt Back Leg 30-60° (HS-8813)

Specifications:

• Packaged Volume: 0.37l
• Packaged Weight: 0.05kg
• Packaged Length: 14cm
• Packaged Width: 9.8cm
• Packaged Height: 2.7cm
