BUSBAR 250A 6P ABS

Name: BUSBAR 250A 6P ABS
Brand: Victron Energy
SKU: 8719076056416
Price: 131.95 AUD
Availability: InStock

$131.95

4 payments of $32.99 with

Price incl. GST (10%) $12.00

In stock: 2 available

Quantity:

1

Save this product for later

Share this product with your friends

Share Share Pin it

BUSBAR 250A 6P ABS

Product Details

Brand: Victron Energy

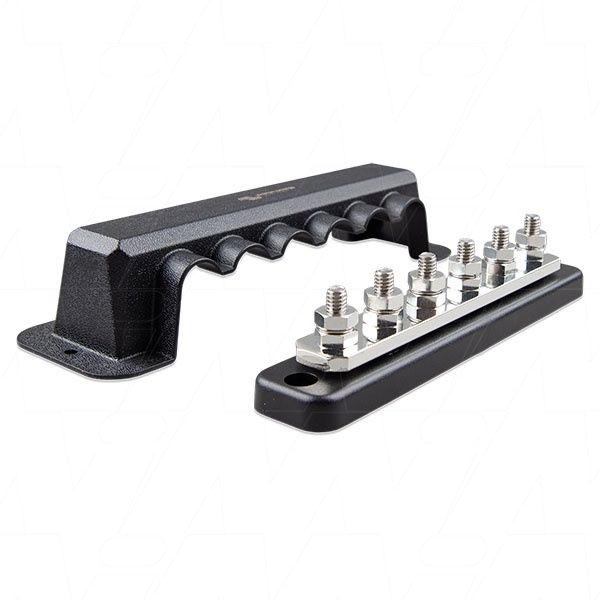

Busbar 250 A with cover

Key Specifications:

Max. Current: 250A
Max. Voltage: 70 VDC
Terminal Diameter: 8.0mm
Terminal Height: 17mm
Terminal Material: Stainless steel
Hex Nut Material: Tin-plated copper
Recommended Torque: 13 N·m / 110 lbf·inch
Busbar Strip Material: Tin-plated copper (5 x 24mm)
Base Material: ABS, black, UL 94 V-0
Cover Material: ABS, black, UL 94 V-2
Weight: 450 g
Dimensions (HxWxD): 48 x 237 x 70 mm

This Busbar 250A is designed with a durable ABS cover for added protection and reliability. It features tin-plated copper components for enhanced conductivity, while the stainless steel terminals ensure long-lasting performance. The product is lightweight at 450 g and compact, measuring 48 x 237 x 70 mm, making it an ideal choice for various applications requiring efficient power distribution.
