CERBO GX MK2 VICTRON

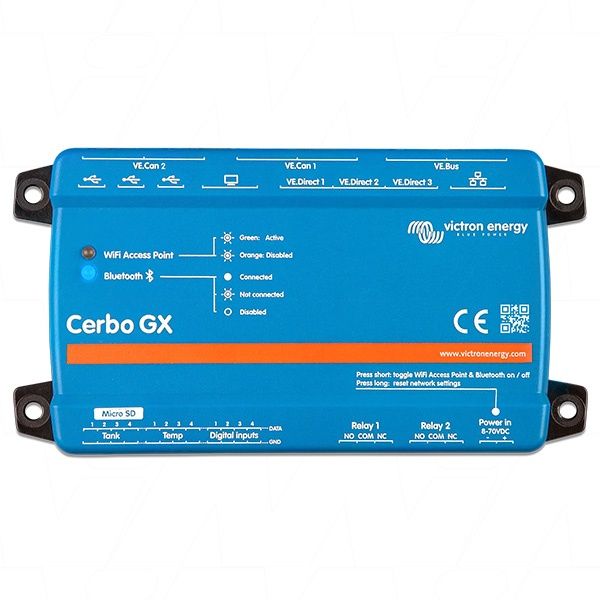

Cerbo GX Mk2

This updated MK2 version of the extremely popular Cerbo GX communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance, now with:

• Two fully functional CAN bus ports, called VE.Can 1 and VE.Can 2, instead of one VE.Can and one BMS-Can port.
• VE.Can 1 is isolated, whereas previous models had no isolated CAN bus port.
• RJ-45 sockets rotated 180 degrees, making it easier to remove cables.
• All three USB ports fully functional, unlike previous models which had two functional ports and one for power only (to a GX Touch).
• Digital inputs capable of pulse counting.

Simply connect through Victron Remote Management (VRM) portal, or access directly using the separate GX Touch 50 or 70 (MFD), or the VictronConnect app thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.

Watch the new video below that explains all there is to know about installing the new Cerbo GX & GX Touch 50.

Perfect monitoring & control

• Instantly monitor:

  • Battery state of charge
  • Power consumption
  • Power harvest from PV, generator, and mains
  • Tank levels and temperature measurements

• Easily control:

  • Shore power input current limit
  • (Auto)start/stop generator(s)
  • Change settings to optimise the system

Follow up on alerts, perform diagnostic checks, and resolve challenges remotely. The Cerbo GX turns any power challenge into an effortless experience.

Maximise your system performance

The Cerbo GX maximises the performance of your system’s components in real-time and keeps them in perfect tune.

Key features include:

• Dual Core Processor and an extra CAN-bus port to support bigger systems.
• Second CAN-bus port supports up to 25 simultaneously connected VE.Can solar chargers.
• NMEA 2000-out support, allowing easy integration into any boat’s network.
• Four tank- and four temperature ports, 3 VE.Direct ports, 3 USB ports, 4 digital inputs, and 2 relays for expanded control.

Maximising systems performance has never been this easy.

Expand your view

The new (optional) GX Touch 50 & GX Touch 70 displays provide:

• Instant overview of your system
• Super slim 5 or 7 inch waterproof design
• Top-mountable setup
• Simple installation

These features bring flexibility and create a crisp, clean dashboard for effortless adjustments.

Simple mounting and configuration

The Cerbo GX is optimised to meet the standards of installer professionals.

• Easily mountable on a DIN-Rail (with DIN35 adapter small, not included).
• Separate touchscreen can be bolted on top of a dashboard, eliminating the need for perfect cut-outs (like with the Color Control GX).
• Connected through just one cable, reducing wiring complexity.
• New Bluetooth feature enables quick connection and configuration via the VictronConnect app.

Outsmart any power challenge

The Cerbo GX serves endless purposes, extending perfect control to diverse applications, such as:

• Marine, Backup & Off-grid solutions: Auto-start/stop generators or delay ignition until the end of ‘quiet’ periods.
• Energy Storage Systems: Maintain backup batteries at 100%, operate during power-cuts, and divert excess (solar) power to self-consumption, saving you money.
• RV and Emergency vehicles: Ensure vital systems function flawlessly.

And that’s just to name a few...
