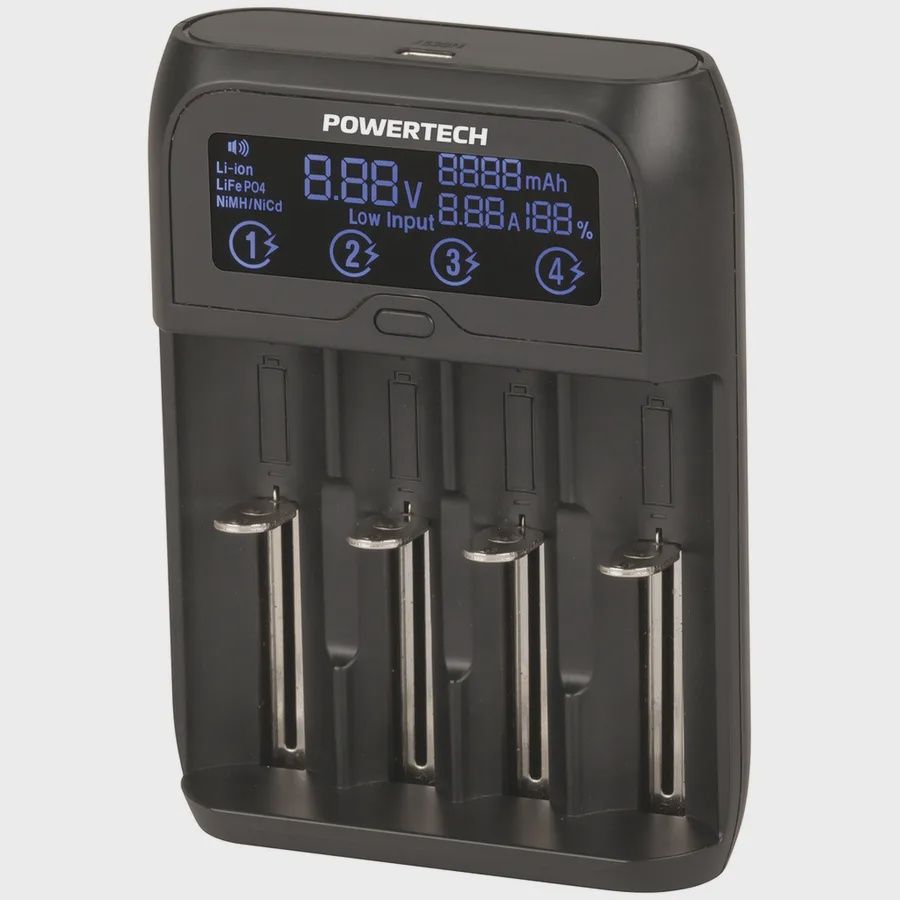

CHGR BATT LI-ION/NIMH 4CH W/LCD

This intelligent charger is equipped with four independent charging slots, allowing you to charge any combination of Ni-MH, Ni-Cd, Li-ion, or LiFePO4 cells simultaneously. Its microprocessor monitors each battery to ensure a safe and effective charge using precise Pulse Width Modulation (PWM) technology. For added convenience, a single Li-ion or LiFePO4 cell can be fast-charged at up to 2A.

Real-Time Battery Monitoring

The high-contrast LCD screen provides real-time battery monitoring, displaying key details such as:

• Charging current (A)
• Charging capacity (mAh)
• Voltage (V)
• Battery power (%)

Safety Features

This charger is designed with additional safety features, including:

• Alarm and error messages for bad batteries
• Reverse polarity protection
• Short circuit protection
• Over-charge protection
• Over-temperature protection

Power Supply

Power is supplied via an available USB port using the included USB Type-C power cable.

Features:

• Suits Ni-MH, Ni-Cd, Li-ion & LiFePO4 batteries
• Intelligent fast charging up to 2A
• Independent charging slots for flexibility
• LCD screen for real-time monitoring

Supported Batteries:

• 3.6-3.7V Li-ion
• 3.2V LiFePO4
• 1.2V Ni-MH/Ni-Cd

Technical Specifications:

• Type of Batteries: Nickel Metal Hydride (Ni-MH), Nickel Cadmium (Ni-Cd), Lithium Ion, Lithium Ferrous Phosphate (LiFePO4)
• Number of Cells: 4.0 pcs
• Charger Output Voltage: 4.2V, 3.65V, 1.48V
• Controller Type: PWM
• Reverse Polarity Protection: True
• Charger Output Current: 2.0A, 1.0A, 650.0mA, 500.0mA
• Cell Type(s) Charged: AA, AAA, Sub-C, C, 10440.0, 14500.0, 16340.0, 17335.0, 17500.0, 17670.0, 18350.0, 18650.0, 22650.0, 26500.0, 26650.0, 14650.0, 18500.0, 18700.0, 20700.0, 21700.0, 22700.0
• Multi-cell Charging Conditions: Independent Charge Control for Each Battery Slot
• USB Voltage Input: 5.0V
• USB Input Current: 2.0A
• USB Item Connection: Type C
• USB Lead Included: True
