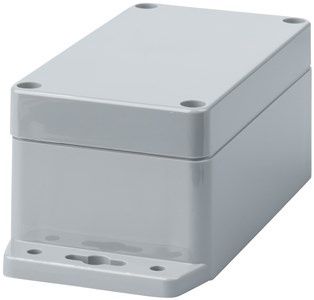

HB6138 - ENCL BOX ABS SEALD W/FLANGE 115X65X55

Features

• Made with ABS Material
• Moulded in dark grey
• Operating temperature: -20°C to +80°C
• Internal base bosses: Allow fixing of PCBs horizontally or connection of terminals, etc.
• Sealing system:
  • Lid and base incorporate a tongue and groove sealing system with a neoprene gasket.
  • Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts.
• Moisture and dust prevention:
  • Wall mounting holes and lid fixing screws are outside the sealing area, preventing ingress.
• External flange options: Some sizes are available with external flange, enabling mounting after the box has been sealed.
• IP65 rating: Designed to IP65 of IEC529 and NEMS 4 standards (dust and hose-proof).
• Internal guide slots: For mounting PCB assemblies vertically (Not available on HB-6120 or HB-6134).

Dimensions

• Box: 115(W) x 65(D) x 55(H)mm
• Base: 145(W) x 65(D)mm

Available Sizes - Dark Grey

• HB6120: 64(W) x 58(D) x 35(H)mm
• HB6122: 115(W) x 65(D) x 40(H)mm
• HB6124: 115(W) x 65(D) x 55(H)mm
• HB6126: 115(W) x 90(D) x 55(H)mm
• HB6128: 171(W) x 121(D) x 55(H)mm
• HB6129: 171(W) x 121(D) x 80(H)mm
• HB6130: 222(W) x 146(D) x 55(H)mm
• HB6132: 222(W) x 146(D) x 75(H)mm
• HB6134: 240(W) x 160(D) x 90(H)mm

Available Sizes - Dark Grey with Mounting Flange

• HB6121:
  • Box: 64(W) x 58(D) x 35(H)mm
  • Base: 94(W) x 58(D)mm
• HB6123:
  • Box: 115(W) x 65(D) x 40(H)mm
  • Base: 145(W) x 65(D)mm
• HB6127:
  • Box: 115(W) x 90(D) x 55(H)mm
  • Base: 145(W) x 90(D)mm
• HB6125:
  • Box: 171(W) x 121(D) x 55(H)mm
  • Base: 201(W) x 121(D)mm

Specifications

• Colour: Dark Grey
• IP Rating: IP65
  • Dust/Particle Ingress Protection: 6 - Dust tight, no ingress of dust.
  • Liquid/Moisture Ingress Protection: 5 - Water jets.
• Dimensions:
  • Width: 115mm
  • Height: 55mm
  • Depth: 65mm
• Packaged Volume: 0.52l
• Packaged Weight: 0.14kg
• Packaged Dimensions:
  • Length: 14.5cm
  • Width: 6.5cm
  • Height: 5.5cm
• Material: ABS Plastic (Acrylonitrile Butadiene Styrene)
• PCB Internal Guide Slots: True
• Lid Screws: 4 pcs
