IWL408F - LED RECTANGLE WORK LIGHT 32W

Ignite 5.5" Rectangular LED Worklamp / Reverse Lamp 9 - 36 Volt 32 Watt

80À° x 60À° Flood (Spread) Beam Pattern

3,200 Raw Lumens, 2,700 Effective Lumens and 6,000K

4 x 8 Watt High Intensity LP LED's

1 Lux @ 49m and 2,400cd Peak Beam Density

Current Draw: 1.9amp @ 12 Volt and 1amp @ 24 Volt

Side Reflector Optic System Technology with Lexan Polycarbonate Lens

Light Transmittance >95%

Integrated Electronic Thermal Management (ETM)

Black Anondised Polyester Powder Coated Die-Cast ADC12 Aluminium Alloy Housing with integrated

Extruded 6061 Aluminium Heat-Sink and Pressure Equalising Vent

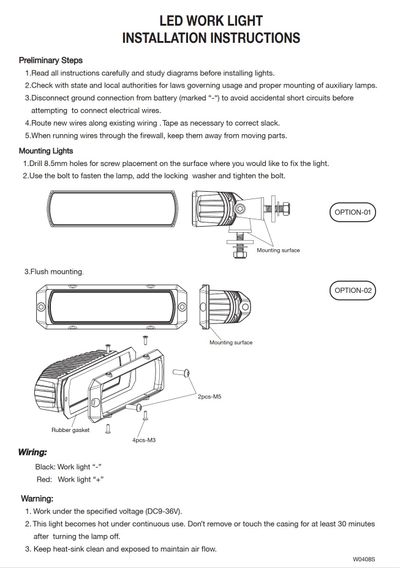

Flush Mount or Surface Mount; Provided with Stainless Steel Bolts and Black Anondised Polyester

Powder Coated Die-Cast ADC12 Aluminium Alloy embedded fascia for flush mounting. Also supplied

with Stainless Steel U Metal Bracket with Stainless Steel Bolt for Surface mounting

300mm Lead with 2 Pin Deutsch Plug

Over and Under Voltage Protection

Reverse Polarity Protection

UV, Water and Shock resistant up to 20G

Anti Rust, corrosion and freezing resistance

50,000 Hours LED Lifespan

ECE R10, R23 CE Approved and EMC Compliant, CISPR 25 Class 3 Certified

IP68 and IP69K Rating

Environment Temperature: -40À°C ~ +60À°C

5 Years Warranty

.

Can be used in may different applications such as; Worklamp, Awning Lamp, Interior Lamp, Courtesy

Lamp, Deck Lamp, Tub Lamp, also ECE approved as a Reverse Lamp
