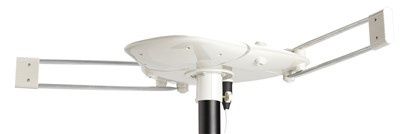

LT3143 ANTENNA TV DIG O/DOOR UHF/VHF 360DEG ROT

Digital Ready and Versatile for Travellers

• Rotates for Optimal Signal Reception: This antenna is ideal for grey nomads and travellers, providing excellent reception no matter where you are in Australia or New Zealand.
• Wide Frequency Coverage: It works across all frequencies, covering VHF low (down to 47MHz, channel 2) and UHF (up to 862MHz, channel 69). Note: Some frequencies perform better than others.

Key Features

• Built-in Signal Amplifier: Includes a 240VAC adaptor and a booster amp that can drive two televisions.
• Rotator Motor with Remote Control: The motor is built into the antenna housing, and a remote control is supplied for easy adjustments.
• Weatherproof Design: Comes with approximately 8 metres of TV lead, featuring a weatherproof plug on one end.
• Compatibility: Works seamlessly with telescopic mast systems (sold separately).
• Output Strength: 80 dBuV.

Additional Details

• Compact and Portable:

  • Antenna dimensions: 750mm (W, deployed) x 300mm (L) x 100mm (D).
  • Folds down for convenient storage.

• Important Notes:

  • Not suitable for saltwater environments.
  • Designed specifically for horizontally-polarised TV signals.

Specifications

• Dimensions:

  • Length: 300mm
  • Width: 750mm
  • Depth: 100mm

• Power and Packaging:

  • Rated for AU mains: Yes
  • Mains lead included: Yes
  • DC Plugpack Voltage: 12V
  • Packaged Volume: 11.89L
  • Packaged Weight: 1.42kg
  • Packaged Dimensions: 45.2cm (L) x 34.6cm (W) x 7.6cm (H)

• Antenna Details:

  • Type: Internal Antenna
  • Usage Location: Outdoor
  • UHF Frequency Range: 470MHz to 860MHz
  • UHF Channel Range: 69ch
  • VHF Frequency Range: 47MHz
  • VHF Channels Covered: 12ch
  • Assembly: Pre-assembled

This antenna is a reliable and versatile solution for travellers seeking consistent TV signal reception across diverse locations.
