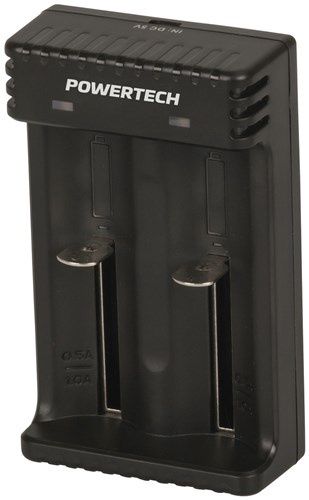

MB3707 - Dual Channel Li-ion/ Ni-MH Battery Charger

Overview

This versatile charger is designed for single or twin-cell usage, making it ideal for a wide range of cylindrical lithium-ion batteries. Its spring-loaded terminals ensure compatibility with various battery sizes, and being USB-powered means there's no need for mains power.

Key Features:

• Automatic Battery Detection: Determines whether a 500mA or 1000mA charge current is required.
• Short Circuit and Reverse Polarity Protection: Keeps your batteries and charger safe during use.
• USB Powered: Convenient and portable, with a USB lead included.
• Compact and Lightweight Design: Perfect for on-the-go charging.

Specifications:

• Input Power: 5VDC 1A
• Charge Output: 4.2VDC
• Dimensions:
  • Length: 100mm
  • Width: 60mm
  • Depth: 28mm
• Weight: 60g

Supported Batteries

This charger supports a variety of battery types, including:

• Lithium-Ion Batteries: 10440, 14500, 16340, 17335, 17670, 18490, 18650, 22650, 26500, 26650, RCR123A
• Other Cell Types Charged: AAA, AA, C, Sub-C

Additional Details

• USB Input Voltage: 5V
• USB Input Current: 2A
• Charger Output Voltage: 4.2V, 1.48V
• Charger Output Current: 500mA, 1000mA
• Connection Type: Contact Plate
• Number of Cells Supported: 2pc
• Packaged Dimensions:
  • Volume: 0.36L
  • Weight: 0.1kg
  • Length: 13cm
  • Width: 8cm
  • Height: 3.5cm

This dual-channel charger is a reliable and convenient tool for keeping your batteries charged and ready to go.
