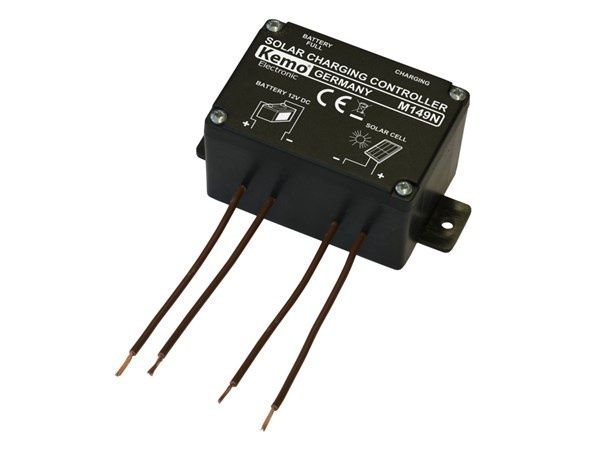

MODULE - CHGR 12V SOLAR CTRLR (M149)

Product Description

Designed for efficiently charging 12 Volt SLA (Sealed Lead Acid) batteries using solar cells rated up to 100 Watts.

Key Features:

• Easy wiring for hassle-free setup.
• Prevents battery discharge during low sunlight conditions.
• Indicates charging and full battery conditions with yellow and green 3mm LEDs.
• Recommended: 20 Amp fuse and fuse holder (sold separately).

Technical Data:

• Solar cell input voltage: 14 - 30 V/DC open circuit.
• Nominal voltage: 12 V/DC.
• Maximum input current: 10 Amps.
• Peak input current: 20 A (<5 minutes).
• Cut in battery voltage: approximately <13.4 Volts.
• Cut off battery voltage: approximately >14.4 Volts.
• Displays: 1 LED for “Charging”, 1 LED for “Battery Full”.
• Passive power consumption: <2.5 mA (LED switched on).

Specifications:

• Dimensions:

  • Width: 72mm
  • Height: 42mm
  • Depth: 50mm

• Packaged Details:

  • Volume: 0.8l
  • Weight: 0.19kg
  • Length: 19.3cm
  • Width: 8.6cm
  • Height: 4.8cm

• Performance:

  • Max PV Open Circuit Voltage: 30V
  • Max Charging Current: 10A
  • Max Solar Panel Array: 60W, 120W
