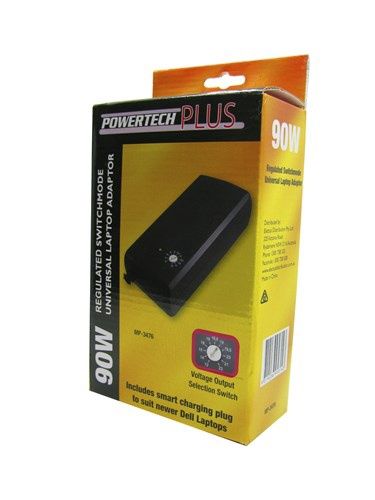

MP3476 MAINS ADPT LAPTOP 12-22VDC 90W

This universal laptop power supply is designed to meet the needs of nearly all laptop models, except for the most power-demanding ones. With manually selectable voltage and nine different connectors included, it is compatible with a wide variety of laptops – it can even charge newer HP models!

Key Features:

• Voltage Outputs:

  • 12VDC, 6A
  • 14/15/16VDC, 5A
  • 18/18.5/19/19.5/20VDC, 4.5A
  • 21/22VDC, 5A

• Connector Compatibility:

  • Connector N: 7.9mm Outer Diameter x 0.9mm Inner Diameter (pin) x 11.5mm Length
    Suits: IBM, Lenovo
  • Connector QV2: 7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
    Suits: HP
  • Connector ZV3: 7.4mm Outer Diameter x 0.6mm Inner Diameter (pin) x 12.5mm Length
    Suits: Dell
  • Connector E: 6.5mm Outer Diameter x 1.4mm Inner Diameter (pin) x 12.0mm Length
    Suits: Fujitsu, Panasonic, Sony, Samsung, Dell
  • Connector G: 5mm Outer Diameter x 1mm Inner Diameter (pin) x 11.5mm Length
    Suits: Samsung
  • Connector P: 5.5mm Inner Diameter x 2.5mm Outer Diameter x 12.0mm Length
    Suits: Acer, Asus, Compaq, Gateway, HP, IBM, Fujitsu, Panasonic, Samsung, Sharp, Toshiba, Hitachi
  • Connector T: 4.75mm Outer Diameter x 1.7mm Inner Diameter x 10.0mm Length
    Suits: HP
  • Connector X: 5.5mm Outer Diameter x 1.7mm Inner Diameter x 12.0mm Length
    Suits: Acer
  • Connector AA: 3.0mm Outer Diameter x 1.0mm Inner Diameter x 8.0mm Length
    Suits: Asus, Samsung, Acer
  • Connector AG: 4.5mm Outer Diameter x 0.60mm Inner Diameter (pin) x 12.0mm Length
    Suits: HP
  • Connector AH: Rectangular
    Suits: Lenovo

Specifications:

• DC Current Rating: 6A
• DC Voltage: 12V, 22V
• Continuous Power: 90W
• Suitable For: Laptop
• Voltage Selection: Manual switch
• Number of Plugs/Sockets: 9
• Connection Type: Multi Plug
• Dimensions:
  • Length: 150mm
  • Width: 58mm
  • Height: 37mm
• Mains Voltage Range: 100V - 240V
• Rated for AU Mains: True
• Rated for US Mains: True
• Mains Lead Included: True

Packaging Details:

• Packaged Volume: 1.37L
• Packaged Weight: 0.68kg
• Packaged Dimensions:
  • Length: 19cm
  • Width: 12cm
  • Height: 6cm

This versatile power supply is perfect for those seeking a reliable solution for their laptop charging needs.
