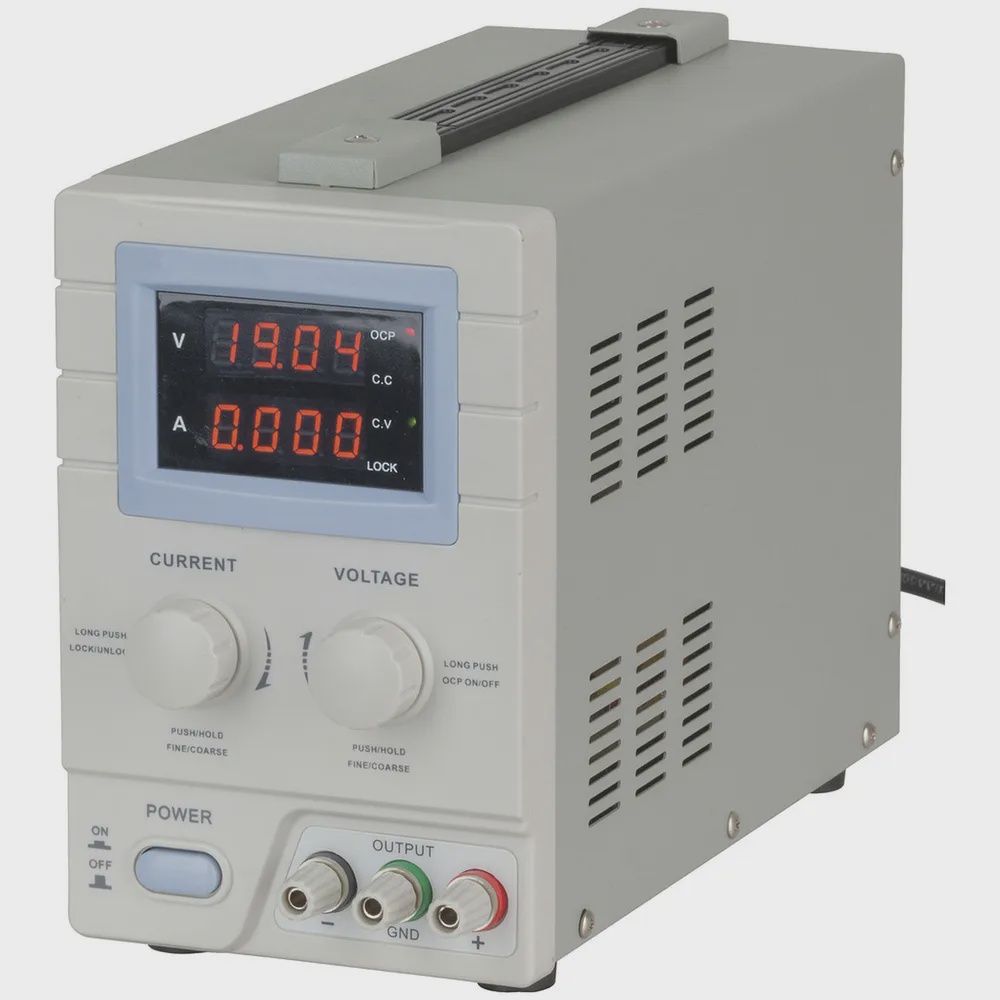

MP3840 0 to 30VDC 0 to 5A Regulated Power supply

Overview

Power your devices with accuracy and the confidence that only comes with a professional lab power supply. Select precise voltage level and current limits to prevent overheating, burnout, and over-current. The output is short-circuit protected, ensuring reliable operation.

The compact construction uses surface mount technology and a powerful internal cooling system, delivering a highly flexible power source. With a ripple voltage of just 1mV, you can trust you're getting precisely the voltage required, reducing the risk of burnout or damage when testing and prototyping sensitive components.

Key Specifications:

• Output voltage: Adjustable from 0 to 30VDC (10mV accuracy)
• Output current: Adjustable from 0 to 5A (1mA accuracy)
• Ripple voltage: 1mV
• Ripple current: 3mA
• Input voltage: 220-240AC 50-60Hz
• LED display: Bright and easy-to-read
• Output connection: Banana plug/binding posts
• Includes: Short banana to alligator lead set

Features

• Precise voltage level and current limit settings
• 1mV ripple voltage for high accuracy
• Helps avoid overheating, burnout, and over-current
• Easy-to-use LED display panel
• Compact design with surface mount technology
• Short-circuit protection

Specifications

Power Supply Units

• Type of Power Supply: Laboratory
• Regulation Type: Regulated
• Voltage Display: True
• Current Display: True
• Output Connection: Banana 4mm (standard), Binding Post Terminals
• Ripple Voltage: 1.0 mV
• Number of Outputs: 1

Mains Powered

• Rated for AU Mains: True
• Rated for US Mains: False
• Auto-select mains voltage: False
• Mains Item Connection: Standard IEC320 (C13/C14)
• Mains Lead Included: True
• Mains Voltage Range: 220.0V - 240.0V
• Frequency: 50.0 Hz

AC Voltage Rating

• AC Voltage Rating: 230.0 V
• AC Frequency: 50.0 Hz

DC Voltage Rating

• DC Voltage: 30.0 V

DC Current Rating

• DC Current Rating: 5.0 A

Product Dimensions

• Length: 270.0 mm
• Width: 120.0 mm
• Height: 185.0 mm
• Weight: 4.8 kg

Packaged Dimensions

• Packaged Dimensions: 30.3 cm (Length) x 20.7 cm (Width) x 24.9 cm (Height)

This regulated power supply is perfect for laboratory use, offering precision, reliability, and safety in a compact design.
