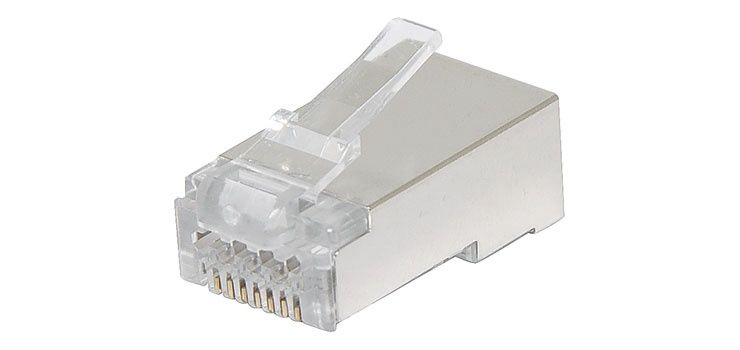

P1394 PLUG MOD SOLID SHIELD 6A THRU

8P8C Cat6 RJ45 Connector

• Suitability: Designed for round solid core shielded (STP) cable.
• Ease of Use: Features a unique through-hole design for quick and easy termination.

Modular 8P8C RJ45 Wiring

Two standards are commonly used for defining RJ-45 termination pinouts:

• 568A:
  • Most commonly used in Australia for end-to-end termination of twisted pair cables.
• 568B:
  • Used in specific scenarios such as crossover cables.

Cable Types:

• Straight-through cable (568A to 568A):
  • Required when connecting a PC to a switch.
• Crossover cable (568A to 568B):
  • Required when connecting a PC directly to another PC.

(Image for reference)
