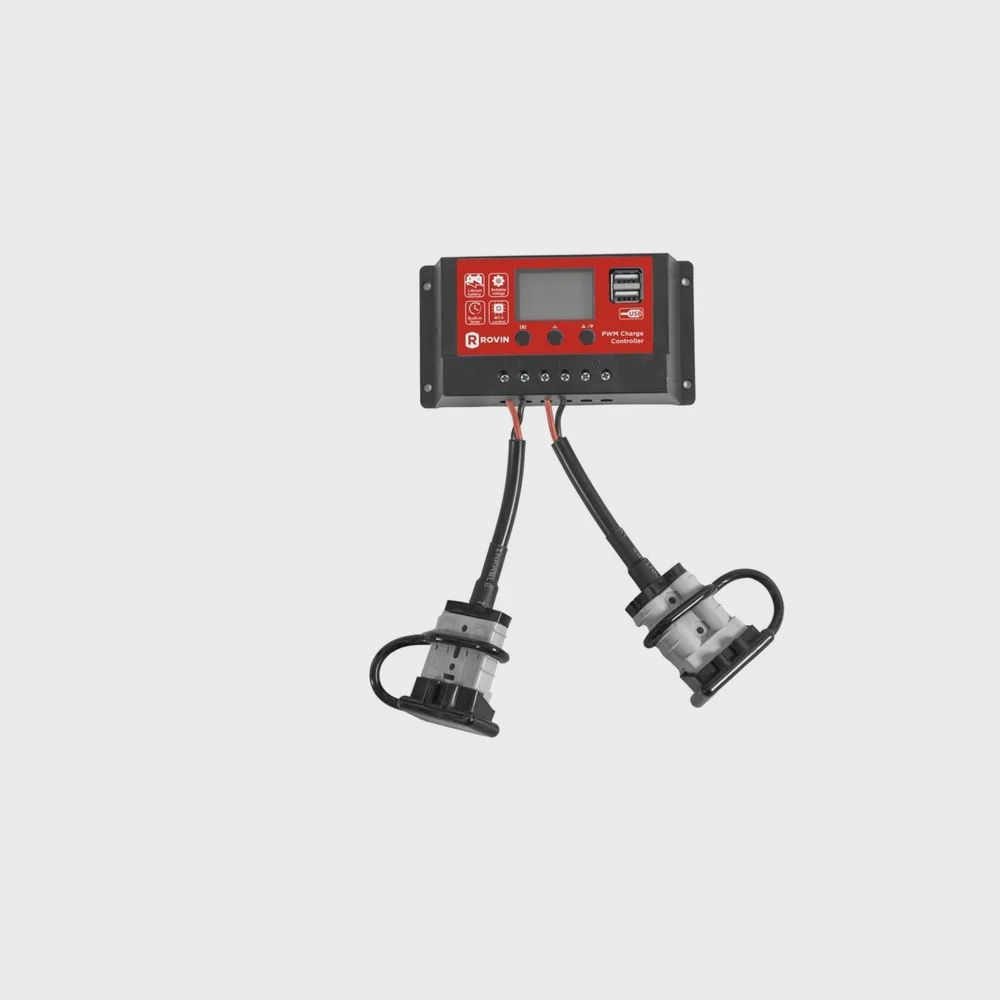

PWM 20A Solar Charge Controller with high-current leads

Overview

This compact charger utilizes Pulse Width Modulation (PWM) technology to efficiently charge 12V or 24V lead acid (sealed, gel, or flooded) and Lithium batteries. It supports 12V solar arrays up to 260W and 24VDC arrays up to 520W. The charger employs a three-stage charging process, which includes:

• Constant current
• Constant voltage
• Float charging

Additionally, it features two USB ports for charging your USB devices.

Safety features include:

• Over-voltage protection
• Low-voltage protection
• Reverse connection protection
• Short-circuit protection
• Over-current protection
• Over-temperature protection

The package includes pre-wired high-current connectors designed for use with Rovin solar panels and accessories. For connecting panels equipped with Solar PV MC4 connectors, you can use the adapter PS5122.

Features:

• Supports GEL, AGM, flooded, and Lithium batteries
• PWM control technology
• 3-stage charging
• 4.5m High-Current 50A connector extension lead
• 50cm High-Current 50A connector lead with battery clamps
• Dual USB Ports
• Max PV Input: 50VDC

Specifications:

Solar Charge Controllers and Regulators:

• Max Charging Current: 20.0 A
• Max Load Current: 20.0 A
• Charge Controller Technology: Pulse Width Modulated (PWM)

DC Current Rating:

• DC current rating: 20.0 A

Product Dimensions:

• Length: 104.0 mm
• Width: 70.0 mm
• Height: 25.0 mm

Packaged Dimensions:

• Length: 28.5 cm
• Width: 23.7 cm
• Height: 7.5 cm
