QM1504 PV METER IRRADIANCE

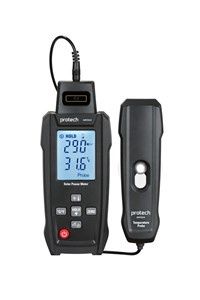

QM1504 Solar Irradiance Meter

Designed for field and laboratory applications, this handheld solar irradiance meter delivers quick and accurate measurements of:

• Sunlight levels
• Surface tilt
• Temperature
• Compass orientation

Ideal for solar panel installation, environmental monitoring, and energy audits, the QM1504 provides real-time readouts with no calibration required. Its clear backlit LCD, portable design, and multi-function capability make it a versatile tool for professionals and enthusiasts alike.

Key Features

• Measures solar irradiance up to 1400W/m²
• Built-in tilt sensor with a range of -90° to +90° and compass function (0–360°)
• Temperature measurement from -30°C to 100°C (response time: 30 seconds)
• °C/°F unit selection, data hold, and low battery indication
• Direct-read display with backlight and intuitive interface

Typical Applications

• Assessing solar panel placement and effectiveness
• Evaluating site conditions for renewable energy projects
• Monitoring sunlight levels for research and agricultural use
• Educational demonstrations and STEM learning environments
• Verifying tilt angles for structural and solar mounting systems

In the Box

• Meter
• Temperature probe with 2m cable
• Zipper carry case
• 4x AA batteries
• Manual

Specifications

• Contains Button Cell: No
• Packaged Volume: 1.95L
• Packaged Weight: 0.51kg
• Packaged Dimensions:
  • Length: 20.6cm
  • Width: 13.5cm
  • Height: 7cm
