QM1506 METER DMM SOLAR PV CAT III 1500V
$229.00
4 payments of $57.25 with
Price incl. GST (10%) $20.82
In stock: 1 available
1
Save this product for later
QM1506 METER DMM SOLAR PV CAT III 1500V
Product Details
Brand: Powertech
Weight: 0.82 kg
QM1506 Description

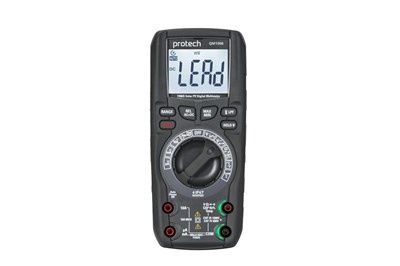

The QM1506 is a digital multimeter designed specifically for solar photovoltaic professionals working in high-voltage DC environments. It supports up to 2000VDC for PV testing and includes both AC and DC measurement modes. With its rugged, waterproof design and large backlit display, the QM1506 enables safe and efficient diagnostics across a wide range of solar and industrial applications.
Key Features:
- Measures up to 2000VDC for photovoltaic systems.
- IP67 waterproof housing with 6000/60000 count LCD.
- True-RMS AC measurement with low-pass filter for VFD systems.
- Lead alert protection and input terminal LED indicators.
- Backlit LCD, selector knob, and switch for low-light use.
Typical Use Cases:
- PV array and module voltage testing.
- Power storage system and battery bank diagnostics.
- High-voltage industrial DC equipment maintenance.
- Electrical testing in railway and data center environments.
- On-site verification of solar system installations.
In the Box:
- Meter
- Zipper carry case
- K-type temperature probe with 95cm cable
- K-Type to banana plug adapter
- 2-pin Test leads with 120cm cable
- 4-pin Test leads with 100cm cable
- 4x AAA batteries
- Manual
Specifications:
- Contains Button Cell: false
- Packaged Volume: 2.52l
- Packaged Weight: 0.82kg
- Packaged Length: 22.5cm
- Packaged Width: 16cm
- Packaged Height: 7cm
