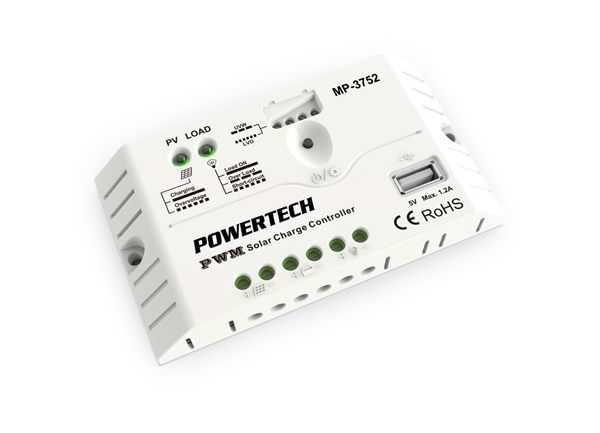

SOLAR CHG CTRL 12/24V 20A W/LED USB

Intelligent and Lightweight Solar Controller

This solar controller utilizes Pulse Width Modulation (PWM) technology to manage battery charging. Designed for total autonomy, its set-and-forget operation ensures maximum charge for your batteries from your solar installation without requiring constant attention.

Key Features:

• Safety Protections: Includes overload, short-circuit, over-discharge, and reverse-polarity protection.
• USB Port: Conveniently located on the front panel, offering 1.2A charging — perfect for keeping your phone charged during power outages without additional equipment.
• Charge Modes: Automatically switches between bulk, equalize, and float charging modes for optimal performance.
• Compatibility: Suitable for sealed lead acid, as well as Gel/flooded type cells.
• Solar Panel Capacity: Works with solar panels up to 320W.

Important Note:

Solar panel nominal voltage must match battery voltage. For example, use a 12V solar panel with a 12V battery system.

Additional Features:

• Automatic Charge Mode Selection
• Compatible with 12V and 24V battery banks
• USB Output: 5V @ 1.2A
• Terminals to suit cables up to 6mm²

Specifications:

• DC Current Rating: 20A
• DC Voltage: 12V, 24V
• IP Rating: IP20
  • Dust/Particle Ingress Protection: Level 2 – Objects > 12.5mm (e.g., fingers or small objects)
  • Liquid/Moisture Ingress Protection: Level 0 – Not protected
• Operating Temperature: -35°C to 55°C
• Input Type: Screw Terminal
• Output Type: Screw Terminal
• Total Current Rating: 1.2A
• Number of Ports: 1pc
• Dimensions:
  • Length: 148mm
  • Width: 86mm
  • Height: 35mm
  • Weight: 160g
• Packaged Volume: 0.8l
• Packaged Weight: 0.21kg
• Packaged Dimensions:
  • Length: 16.1cm
  • Width: 10.1cm
  • Height: 4.9cm
• Charge Controller Technology: Pulse Width Modulated (PWM)
• Max PV Open Circuit Voltage: 50V
• Max Charging Current: 20A
• Max Load Current: 20A
• Max Solar Panel Array: 240W (12V), 480W (24V)

This compact and efficient solar controller is an excellent choice for managing your solar-powered battery systems with ease and reliability!
