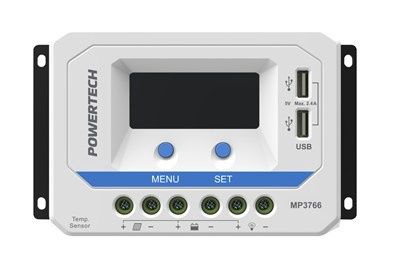

SOLAR CHG CTRL PWM 12/24V 30A W/LCD

This compact charger is designed to efficiently charge 12V or 24V lead acid batteries (sealed, gel, or flooded) using Pulse Width Modulation (PWM) technology. It supports 12V solar arrays up to 390W or 24VDC arrays up to 780W, making it a versatile choice for your solar energy needs.

Key Features:

• PWM control technology for efficient charging.
• Three-stage charging: constant current, constant voltage, and float charging.
• Backlit LCD screen providing real-time feedback on:
  • Battery voltage
  • PV voltage
  • PV current
  • Operational and fault messages
• Two USB ports to charge your USB gadgets.
• Temperature sensor input for battery charging compensation.
• Low-voltage disconnect/reconnect to protect your system.
• 2 programmable timers for added flexibility.

Additional Highlights:

• Recommended for battery capacities of 30Ah and above.
• Durable, fanless design for permanent installation.
• Heavy-duty screw terminals support cabling up to 6AWG.
• Comprehensive safety features, including:
  • Over-voltage protection
  • Low-voltage protection
  • Reverse connection protection
  • Short-circuit protection
  • Over-current protection
  • Over-temperature protection

This charger is a reliable and efficient solution for managing your solar energy system, ensuring safety and optimal performance for your batteries.
