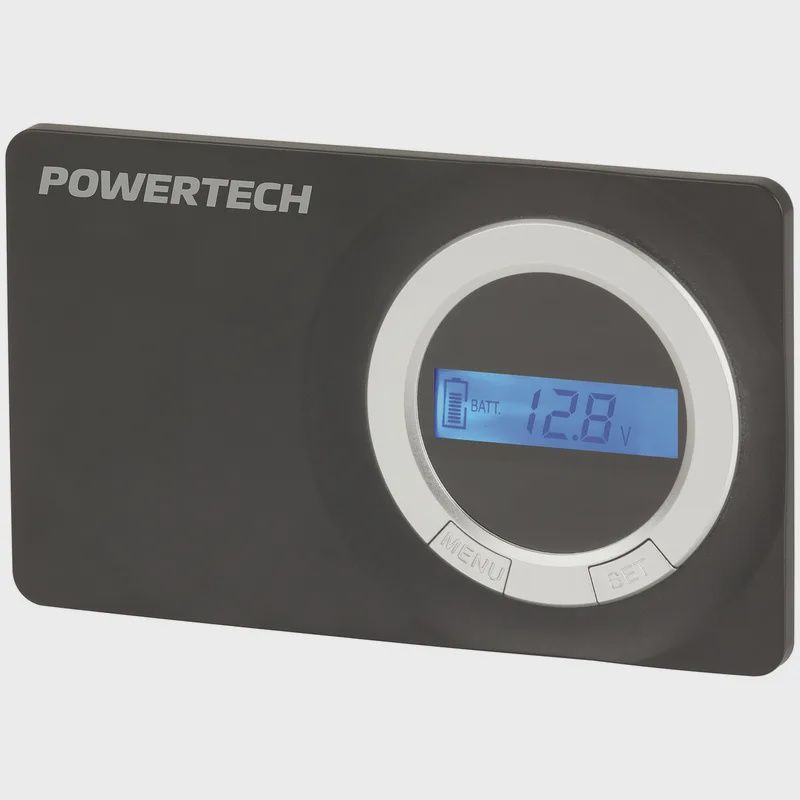

SOLAR REG 12/24V 30A PWM FLUSH MNT W/LCD

This flush mount solar charge controller allows you to monitor your power system without compromising the aesthetics of your RV or boat’s interior. Its intelligent design includes a PWM charger with bulk, boost/equalize, and float modes, ensuring your Lead Acid or LiFePO4 batteries remain in optimal condition.

Key Features:

• 8 - 32VDC Operating Range, with a 50VDC Maximum Open-Circuit Solar Voltage.
• Compatible with Lead Acid and LiFePO4 batteries.
• Flush mount design for a seamless installation.
• Bulk, Boost/Equalize, Float charging modes to maintain battery health.
• LCD screen displaying real-time energy stats, operational parameters, and fault messages.
• Battery temperature compensation for enhanced performance.
• Remote control capability: Monitor and set parameters via PC or Smartphone App (Wi-Fi module sold separately).
• 10mm²/8AWG Recommended Cable Size (16mm²/6AWG Max).
• Max input: 360W @ 12V, 720W @ 24V.

Installation Made Easy:

• Pluggable terminals on the rear for solar panel, battery, and temperature sensor connections.
• RS485 port for computer programming or Wi-Fi module integration.

Battery Support:

• Sealed, Gel, or Flooded Lead (8V - 30V).
• LiFePO4 (4S/12V, 8S/24V).

The integrated LCD screen provides clear, real-time information and is navigated using two push buttons. The system also includes extensive electronic safety protection, ensuring your appliances and gadgets stay powered when you’re off-grid.

Note: To use lithium batteries, the unit must be programmed using the Wi-Fi adapter (sold separately) or with the RS485 to USB cable included in the box.
