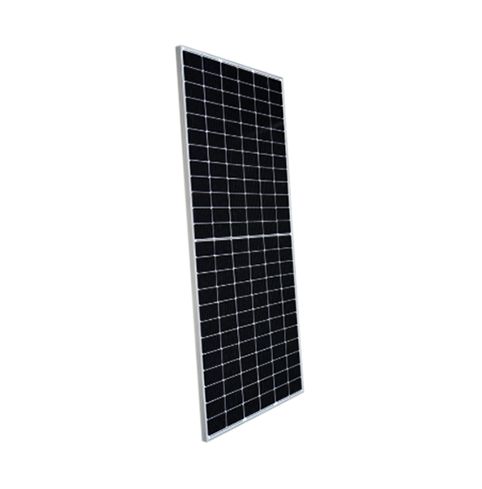

STP-450S 450W SOLAR BIFACIAL DUAL GLASS
$253.64
4 payments of $63.41 with
In stock: 22 available
1
Save this product for later
STP-450S 450W SOLAR BIFACIAL DUAL GLASS
Product Details
Brand: SUNTECH
Weight: 21.30 kg
Key Features of the Suntech Ultra V Pro N-type 450W Bifacial Solar Panel
-
Dual Glass Design
The polymer backsheet has been eliminated, enhancing long-term durability. -
Bifacial Design for Added Gains
This innovative feature allows the module to capture sunlight from both the front and back, potentially increasing energy harvest and offering greater flexibility in installation. -
High Module Conversion Efficiency
Achieves an impressive 22.5%, thanks to advanced cell technology and a state-of-the-art manufacturing process. -
Superior Performance in Low Light Conditions
Delivers more power output during cloudy days, mornings, and evenings.
Technical Specifications
| Feature | Details |
|---|---|
| Weight [kg] | 21.5 |
| Depth [mm] | 30 |
| Quantity Per Pallet | 36 |
| Brand | Suntech |
| IP Rating | IP68 |
| Operating Temperature Range [°C] | -40 °C to +85 °C |
| Maximum Power (Pmp) [W] | 450 |
| Maximum Series Fuse Rating [A] | 35 |
| Frame Colour | Black |
| Solar Cell Type | Monocrystalline |
| Maximum Power Voltage (Vmp) [V] | 30.04 |
| Maximum Power Current (Imp) [A] | 14.98 |
| Short Circuit Current (Isc) [A] | 15.92 |
| Open Circuit Voltage (Voc) [V] | 35.37 |
| Pmp Temp Coefficient [%/°C] | -0.29 |
| Voc Temp Coefficient [%/°C] | -0.25 |
| Isc Temp Coefficient [%/°C] | 0.046 |
| Junction Box | IP68 rated (3 bypass diodes) |
| Maximum System Voltage [V] | 1500 |
| Number of Cells | 96 |
| Width [mm] | 1134 |
| Length [mm] | 1762 |
| Max Efficiency | 22.5% |
| Family | Ultra V Pro Mini |
Additional Resources
Watch the Smart Factory in Action
Discover the advanced manufacturing process behind the Suntech Ultra V Pro by watching this video.
