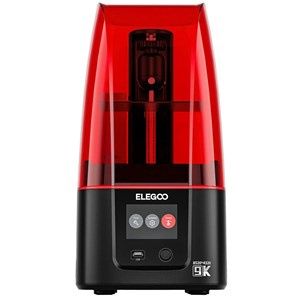

TL4824 PRINTER 3D RESIN MARS 4 ELEGOO 9K

9K Print Quality and Precision

The 7" 9K monochrome LCD with a resolution of 8520x4320 and an 18x18μm XY resolution ensures your models are printed with extremely fine details and sharp edges. With a printing speed of up to 70mm/h, this printer delivers superior quality and precision.

Powerful COB Light Source

The MARS 4 features a powerful COB light source made up of 36 LEDs, working together beneath the monochrome LCD. This setup provides a highly uniform UV light beam across the build area, resulting in models with exceptional precision and smooth surfaces.

Efficient Heat Dissipation

Equipped with a large cooling fan and heat-conducting copper tubes, the printer ensures fast heat transfer and efficient heat dissipation performance, which helps to prolong its service life.

Laser-Carved Build Plate

The laser-engraved build plate offers excellent adhesion during printing and makes it easy to remove the printed models once the process is complete.

Key Features at a Glance:

• 7" 9K mono LCD with 8520x4320 resolution
• Incredible 18μm XY precision
• Build volume: 153.36x77.76x175 mm³
• Powerful COB light source for uniform UV light
• Voxeldance Tango Slicer for an improved slicing experience

Specifications:

• Maximum Print Size: 153.36×77.76×175mm
• Maximum Printing Speed: 30–70mm/h
• Layer Thickness: 0.01mm–0.2mm
• Touchscreen Size: 3.5 inches
• XY Axis Resolution: 18μm
• Z Axis Resolution: 0.01μm
• Layer Resolution: ±0.02mm
• 3D Printer Type: Resin
• Frame Type: Closed
• Light Source: COB Light Source
• Release Film: PFA
• Print Resolution: 18μm

Dimensions and Weight:

• Printer Dimensions: 153.36mm (L) x 77.76mm (W) x 175mm (H)
• Weight: 5.5kg

Packaged Dimensions:

• Length: 60.8cm
• Width: 27.3cm
• Height: 2.1cm
• Packaged Weight: 7.23kg

Additional Information:

• Availability: Stocked item
• Packaged Volume: 3.49L
• Contains Button Cell: False
