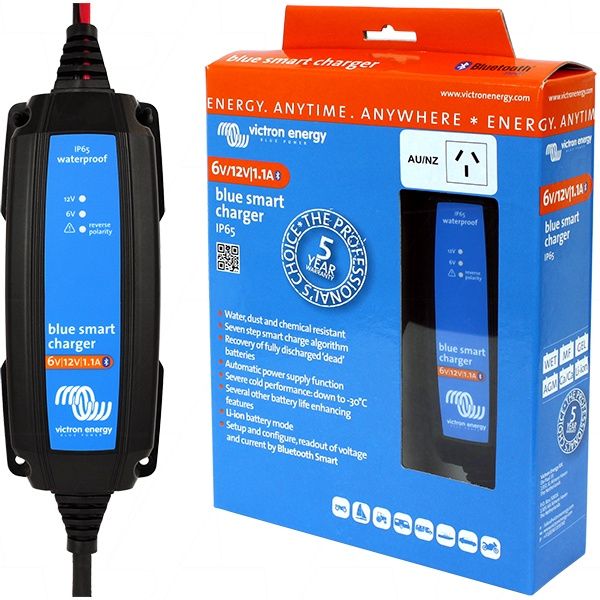

Victron Energy Blue Smart IP65 SLA/LiFePO4 charger & maintainer - auto voltage 6V/12V 1.1A

Overview

The Blue Smart IP65 Power Sports Charger is a professional-grade battery charger and maintainer, designed specifically for Motorcycles, Personal Watercraft, and other smaller battery applications. It offers Bluetooth and App-controlled functionality, allowing for ultimate monitoring and control via your smartphone or smart device.

Key Features

• Plug & Play functionality: Ideal for recreational or infrequent use with Motorcycle, PWC, and other smaller battery applications.
• IP65-rated case: Water, dust, and chemical resistant.
• Seven-step smart charge algorithm: Extends battery service life.
• Automatic voltage detection: Applies appropriate charge profile for 6V and 12V batteries.
• 1.1A output: Charges batteries up to 30Ah capacity or maintains batteries up to 60Ah capacity.
• Preset charge algorithms: Optimally set for common Lead Acid and Lithium Iron Phosphate batteries.
• Expert Mode: Allows users to alter presets to match battery manufacturer specifications.
• Low power mode: Provides 500mA current for charging smaller batteries.
• Deep discharge recovery: Revives fully discharged 'dead' batteries and partially reverses sulfation.
• Automatic power supply function: Can also act as a power supply.
• Cold weather performance: Operates in temperatures as low as -30°C.
• Safety features: Reverse Polarity, Short Circuit, and Over Temperature protection.

Smart 7-Step Charging Program

The seven-step charging algorithm ensures optimal battery performance, health, and longevity. It delivers the necessary power while maintaining the battery's condition.

• Preset algorithms: Designed for all common Lead Acid and Lithium batteries.
• Expert Mode: Enables customization of parameters and time limits for specific battery manufacturer requirements.

Deep Discharge Recovery

Unlike other chargers, the Blue Smart IP65 Charger can revive deeply discharged batteries by force-feeding them with a low current. Once sufficient voltage is achieved, normal charging resumes. (Note: Battery voltage should be manually set in the VictronConnect app to ensure proper end voltage.)

Easy Battery Connection

This charger comes with multiple connection options:

• Alligator clips: Quick and easy attachment.
• M8 eyelets: Perfect for hard-to-reach battery spots.
• Cigarette lighter plug with power port adapter: Suitable for modern European motorcycles.

You can even leave the charger permanently connected for convenience.

Remote Monitoring

With built-in Bluetooth, you can monitor the real-time status of the charger and battery via your smartphone, tablet, or laptop. All settings are configurable through the VictronConnect app.

Additional Features

• VictronConnect App: Program the charger, view live status, and access historical data for Victron products.
• History File: Access detailed historical data for the last 40 charge cycles, including start/end voltages, time spent in each cycle, amp-hours charged, and completion status.
• LED Indication: Simple visual representation of charger modes:
  • Green light: 12V charging.
  • Orange light: 6V charging.
  • Red light: Reverse polarity warning.

LED Mode Indicators

• Standby Mode: Charger ready for connection (Green and Orange flashing).
• 12V Bulk Charge Mode: Fast charge (Green flashing).
• 12V Absorption Mode: Slow charge (Green flashing).
• 12V Storage Mode: Solid Green light.
• Reverse Polarity (Error): Solid Red light (Green and Orange flashing).
• 6V Bulk Charge Mode: Fast charge (Orange flashing).
• 6V Absorption Mode: Slow charge (Orange flashing).
• 6V Storage Mode: Solid Orange light.

Included in the Package

• 6V/12V 1.1A Charger with AU/NZ Plug.
• Lead to alligator clips.
• Lead to M8 eyelets.
• Lead to Cigarette Plug / Power Port.

Product Specifications

This professional-grade charger is available at The Electronic Barn.
