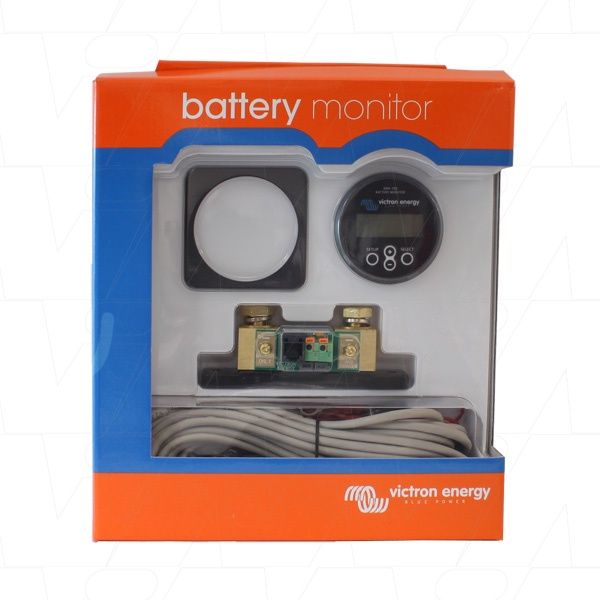

Victron Energy BMV-702 6.5-95VDC Precision Battery Panel Monitor Display with Midpoint Monitoring

Key Features

Range - 6.50-95VDC

• Precision battery monitoring for a wide voltage range.

Battery ‘fuel gauge', time-to-go indicator, and much more

• Calculates remaining battery capacity based on ampere-hours consumed, discharge current, temperature, and battery age.
• Utilizes advanced software algorithms to account for these variables.

Display Options

• Voltage, current, ampere-hours consumed.
• State of charge, time to go, and power consumption in Watts.

Additional Input (BMV-702)

• Programmable to measure voltage of a second battery, battery temperature, or midpoint voltage.

Bluetooth Smart Connectivity

Monitor your batteries conveniently on Apple or Android smartphones, tablets, MacBooks, and other devices using the VE.Direct Bluetooth Smart Dongle.

Easy Installation

• All electrical connections are made to the quick connect PCB on the current shunt.
• The shunt connects to the monitor via a standard RJ12 telephone cable.
• Included components:
  • RJ12 cable (10 m)
  • Battery cable with fuse (2 m)
  • Separate front bezel for square or round display appearance
  • Securing ring for rear mounting
  • Screws for front mounting

Easy Programming (with your smartphone!)

• Quick install menu and detailed setup menu with scrolling texts.
• Option to use the smartphone app for fast and simple programming (requires Bluetooth Smart dongle).

Standard Features

• Battery voltage, current, power, ampere-hours consumed, and state of charge.
• Remaining time at the current rate of discharge.
• Programmable visual and audible alarms.
• Programmable relay to turn off non-critical loads or run a generator.
• 500 Amp quick connect shunt and connection kit.
• Shunt selection capability up to 10,000 Amps.
• VE.Direct communication port.
• Stores a wide range of historical events for evaluating usage patterns and battery health.
• Wide input voltage range: 9.5 - 95V.
• High current measurement resolution: 10 mA (0.01A).
• Low current consumption: 2.9Ah/month (4mA) @12V and 2.2Ah/month (3mA) @24V.

BMV-702 Additional Features

• Additional input for measuring voltage (of a second battery), temperature, or midpoint voltage.
• Corresponding alarm and relay settings.

Midpoint Voltage Monitoring (BMV-702 Only)

• Designed for monitoring large and expensive battery banks at a low cost.
• Measures midpoint voltage, which is the voltage halfway along the string of series-connected cells.
• Identifies deviations from the ideal midpoint voltage, which may indicate improper battery care or failed cells.
• Helps prevent severe damage to expensive batteries by generating timely warnings.
• Consult the BMV manual for further details.

More About Midpoint Voltage

• One bad cell or battery can compromise an entire battery bank.
• Midpoint voltage monitoring provides early warnings for series-connected batteries.
• For optimal battery service life, use the Battery Balancer (BMS012201000).

Product Specifications

• Selling Unit: EACH
• Model No: BMV-702
• Inventory Code: 67001-454
• Brand: Victron Energy BAM010702000R
• Dimensions:
  • Width: 69mm
  • Height: 31mm
  • Length/Breadth/Depth: 69mm
• Weight: 750g
