Victron Energy BMV-712 Smart 6.5-70VDC Smart Precision Battery Panel Monitor Display with Midpoint Monitoring

Range - 9.5-95VDC

Bluetooth Inside

With Bluetooth built-in, the BMV Smart is ready for the Internet of Things (IoT) era. Bluetooth is implemented in most other Victron Energy products, enabling wireless communication between products to simplify system installation and enhance performance.

Download the Victron Bluetooth App

Use a smartphone or other Bluetooth-enabled device to:

• Customise settings
• Monitor all important data on a single screen
• View historical data
• Update the software when new features become available

Easy to Install

All electrical connections are made to the quick connect PCB on the current shunt. The shunt connects to the monitor with a standard RJ12 telephone cable.

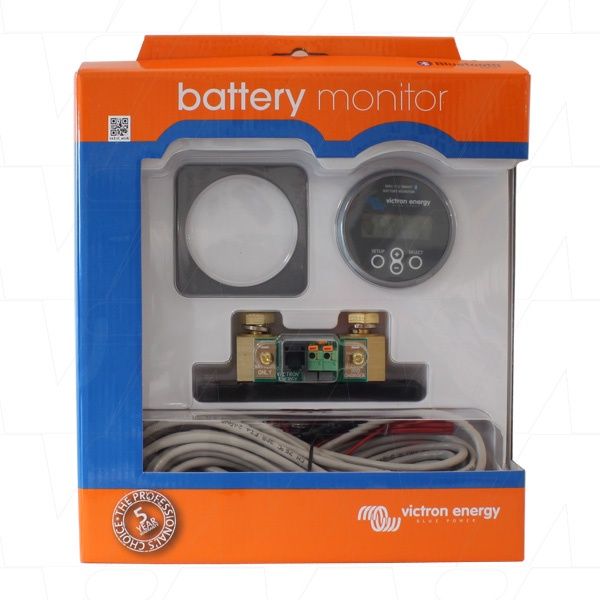

Included components:

• RJ12 cable (10 m)
• Battery cable with fuse (2 m)
• Separate front bezel for square or round display appearance
• Securing ring for rear mounting
• Screws for front mounting

No other components are needed.

Midpoint Voltage Monitoring

One bad cell or one bad battery can destroy a large, expensive battery bank. When batteries are connected in series, a timely warning can be generated by measuring the midpoint voltage.

For more information, please see the BMV manual, section 5.2. To maximize the service life of series-connected lead-acid batteries, we recommend the Battery Balancer (BMS012201000).

Very Low Current Draw from the Battery

• Current consumption:
  • 0.7Ah per month (1mA) @ 12V
  • 0.6Ah per month (0.8mA) @ 24V

Especially for Li-ion batteries, which have virtually no capacity left when discharged until low voltage shutdown, a residual current of 10mA can damage a 200Ah battery if the system is left in a discharged state for more than 8 days.

Bi-Stable Alarm Relay

Prevents increased current draw in case of an alarm.

Other Features

• Battery voltage, current, power, ampere-hours consumed, and state of charge
• Remaining time at the current rate of discharge
• Programmable visual and audible alarm
• Programmable relay to turn off non-critical loads or to run a generator when needed
• 500 Amp quick connect shunt and connection kit
• Shunt selection capability up to 10,000 Amps
• VE.Direct communication port
• Stores a wide range of historical events, useful for evaluating usage patterns and battery health
• Wide input voltage range: 6.5 - 70V
• High current measurement resolution: 10 mA (0.01A)
• Additional input to measure voltage (of a second battery), temperature, or midpoint voltage, with corresponding alarm and relay settings

Product Details

• Selling Unit: EACH
• Model No: BMV-712 Smart
• Inventory Code: 64900-293
• Brand: Victron Energy BAM030712000R
• Dimensions:
  • Width: 69mm
  • Height: 31mm
  • Length / Breadth / Depth: 69mm
• Weight: 750g
