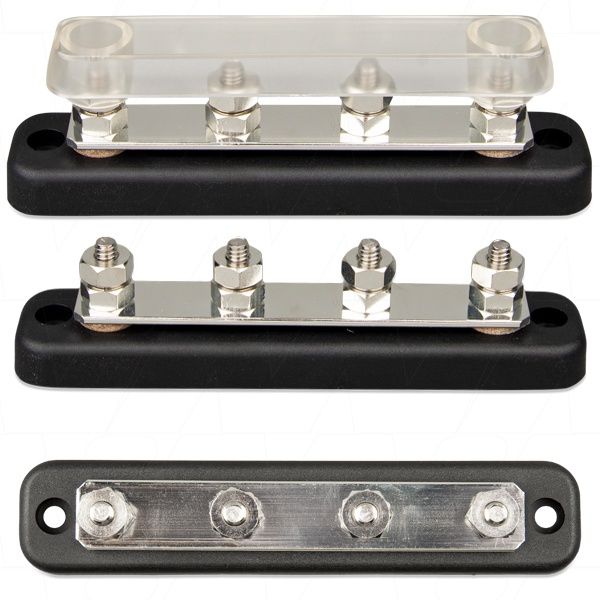

Victron Energy Busbar 150A 4P +cover

Busbar 150A with Cover

Key Specifications:

• Max. Current: 150A
• Max. Voltage: 70 VDC
• Terminal Diameter: 6.35mm
• Terminal Height: 17mm
• Terminal Material: Stainless steel
• Hex Nut Material: Tin-plated copper
• Recommended Torque: 7 N·m / 60 lbf·inch
• Busbar Strip Material: Tin-plated copper (1.4 x 18 mm)
• Base Material: ABS, black, UL 94 V-0
• Cover Material: Clear Polycarbonate, UL 94 HB
• Weight: 200 g
• Dimensions (HxWxD): 45 x 150.4 x 31.8 mm

Product Details:

• Selling Unit: EACH
• Model Number: VBB115040020
• Inventory Code: 64900-6264P
• Brand: Victron Energy
• Original Brand: Victron Energy VBB115040020
• Description: Busbar 150A 4P +cover
• Width: 152.4mm
• Height: 45mm
• Length / Breadth / Depth: 31.8mm
• Weight: 200g

This high-quality busbar from Victron Energy is designed for reliability and durability. With a maximum current of 150A and a voltage capacity of 70 VDC, it is built to handle demanding applications. The tin-plated copper busbar strip ensures excellent conductivity, while the ABS base and clear polycarbonate cover offer robust protection and compliance with UL standards.
