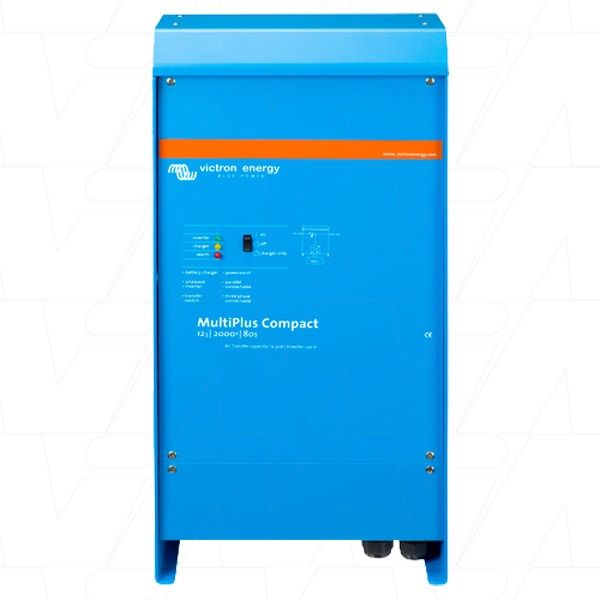

Victron Energy MultiPlus Compact Inverter & SLA/LiFePO4 Charger 12V 2000VA 80A - 30A

Key Features

Two AC Outputs

• The main output has no break functionality. In the event of a grid failure or disconnection from shore/generator power, the MultiPlus takes over supply to connected loads in less than 20 milliseconds, ensuring uninterrupted operation of computers and other electronic equipment.
• The second output is live only when AC is available on the input of the MultiPlus. It can be used for loads that should not discharge the battery, such as water heaters (available on models rated at 3 kVA and higher).

Virtually Unlimited Power with Parallel Operation

• Up to 6 MultiPlus units can operate in parallel to achieve higher power output.
• Example: Six 24/5000/120 units provide 25 kW / 30 kVA output power with 720 Amps charging capacity.

Three Phase Capability

• Three units of the same model can be configured for three-phase output.
• Up to 6 sets of three units can be parallel connected for a massive 75 kW / 90 kVA inverter and more than 2000 Amps charging capacity.

PowerControl - Managing Limited Generator, Shore, or Grid Power

• The MultiPlus is a powerful battery charger capable of drawing significant current from generators or shore supplies (nearly 10 A per 5 kVA Multi at 230 VAC).
• With the Multi Control Panel, users can set a maximum generator or shore current. The MultiPlus will adjust its power usage to prevent overloading the generator or shore supply.

PowerAssist - Enhancing Shore or Generator Power Capacity

• This feature supplements the capacity of alternative power sources.
• During peak power demand, the MultiPlus compensates for insufficient shore or generator power using battery power and recharges the battery when the load decreases.

Solar Energy Integration

• The MultiPlus can be used in off-grid or grid-connected PV systems and other alternative energy systems.
• Loss of mains detection software ensures AC power availability even during a grid failure.

System Configuration Options

• Stand-alone applications: Settings can be adjusted quickly using a DIP switch setting procedure.
• Parallel and three-phase applications: Configure using VE.Bus Quick Configure and VE.Bus System Configurator software.
• Off-grid, grid-interactive, and self-consumption applications: Configure with Assistants, dedicated software for specific applications.

Monitoring and Control Options

On-site Monitoring and Control

• Battery Monitor
• Multi Control Panel
• Ve.Net Blue Power Panel
• Color Control Panel
• Smartphone or tablet (Bluetooth Smart)
• Laptop or computer (USB or RS232)

Remote Monitoring and Control

• Victron Ethernet Remote
• Venus GX
• Color Control Panel
• Data storage and display available on the free VRM (Victron Remote Management) website

Remote Configuration

• Systems with a Color Control panel connected to Ethernet can be accessed and configured remotely.

Package Includes

• 12V 2000VA 80A Inverter Charger

Product Details

• Selling Unit: EACH
• Model No: VEICMPC-12/2000/80
• Inventory Code: 64900-243A
• Brand: Victron Energy
• Original Brand: Victron Energy CMP122200000
• Description: MultiPlus Compact Inverter & SLA/LiFePO4 Charger 12V 2000VA 80A - 30A CMP122200000
• Chemistry: Lithium Iron Phosphate / Lead Acid (LiFePO4/SLA)
• Voltage: 12V
• Size: 80A
• Dimensions:
  • Width: 255mm
  • Height: 420mm
  • Length / Breadth / Depth: 125mm
• Weight: 12kg
