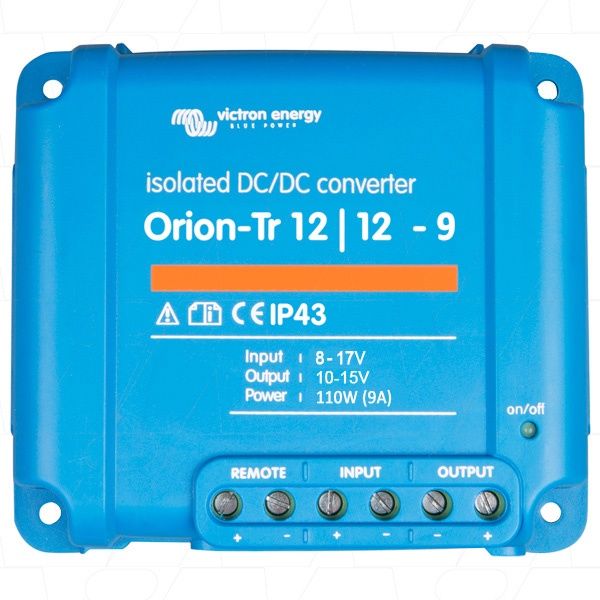

Victron Energy ORION-Tr 12/12-9A

Orion-Tr Range of DC to DC Galvanic Isolated Converters

Key Features:

• Remote on-off:
  The remote on-off feature eliminates the need for a high current switch in the input wiring. It can be operated with a low power switch or, for example, the engine run/stop switch (refer to the manual for details).

• Adjustable output voltage:
  This converter can also function as a battery charger. For instance, it can charge a 12 Volt starter or accessory battery within a 24V system.

• Short circuit proof and parallel operation:
  All models are short circuit proof and allow for an unlimited number of units to be connected in parallel to increase output current.

• IP43 protection:
  Provides IP43 protection when installed with the screw terminals oriented downwards.

• Screw terminals:
  Installation is simple and does not require any special tools.

• Input fuse (non-replaceable):
  Available on 12V and 24V input models only.

Product Details:

• Selling Unit: EACH
• Model No: ORION-Tr 12/12-9A (110W)
• Inventory Code: 64900-385
• Brand: Victron Energy
• Original Brand: Victron Energy ORI121210110R
• Description: DC to DC Converter 9A Galvanic Isolated 8-17VDC Input to 10-15VDC Adjustable ORI121210110R
• Voltage: 12V
• Size: 110W
• Width: 113mm
• Height: 47mm
• Length / Breadth / Depth: 100mm
• Weight: 420g

This compact and robust DC to DC converter is designed for versatility, reliability, and ease of use. Perfect for a wide range of applications, it ensures efficient performance and durability.
