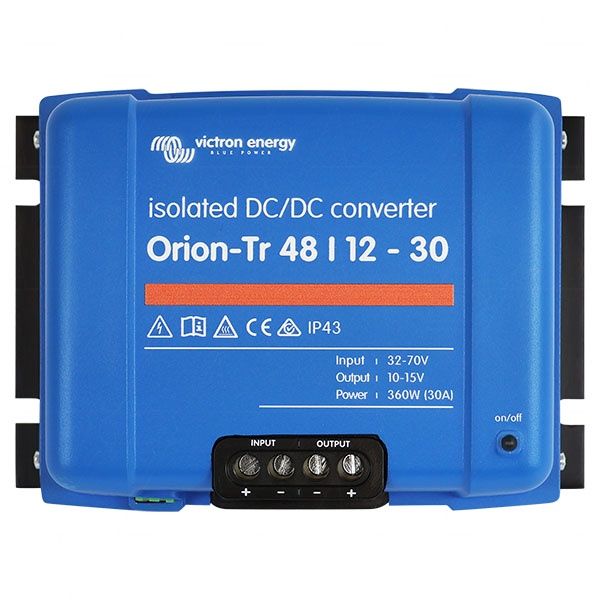

Victron Energy ORION-Tr 48/12-30A

Replaces previous model ORI481236100

Orion-Tr Range of DC to DC Galvanic Isolated Converters

Key Features:

• Remote on-off
  The remote on-off eliminates the need for a high current switch in the input wiring. It can be operated with a low power switch or, for example, the engine run/stop switch (see manual).

• Adjustable output voltage
  Can also be used as a battery charger, for instance, to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

• Short circuit proof
  All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.

• High temperature protection
  Output current will reduce at high ambient temperatures.

• IP43 protection
  Provides protection when installed with the screw terminals oriented downwards.

• Screw terminals
  No special tools are needed for installation.

• Input fuse (not replaceable)
  Applicable on 12V and 24V input models only.

Product Details

• Selling Unit: EACH
• Model No: ORION-Tr 48/12-30A (360W)
• Inventory Code: 64900-393
• Brand: Victron Energy
• Original Brand: Victron Energy ORI481240110
• Description: DC to DC Converter 30A Galvanic Isolated 40-70VDC Input to 10-15VDC Adjustable ORI481240110
• Voltage: 48V
• Size: 360W
• Dimensions:
  • Width: 186mm
  • Height: 130mm
  • Length / Breadth / Depth: 80mm
• Weight: 1.8kg
