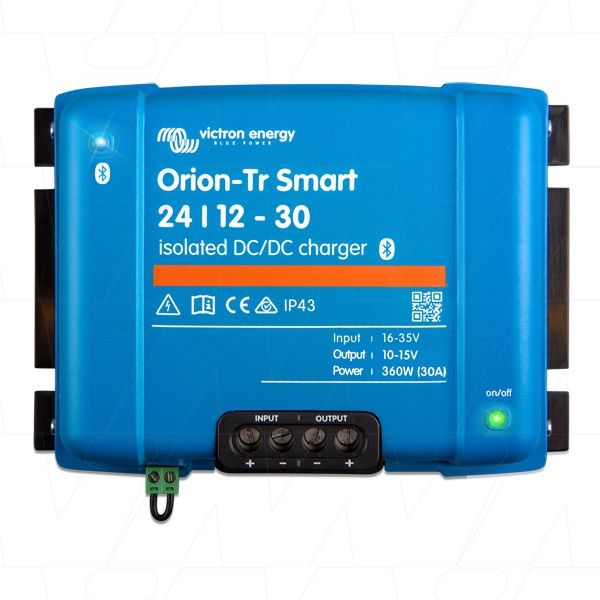

Victron Energy ORION-Tr Smart 24/12-30A

Overview

ORI241236120 Orion-Tr Smart DC-DC Charger Isolated

The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth.

Key Features

• Dual Battery Systems: Designed for use in vehicles or boats where the (smart) alternator and start battery charge the service battery.
• Bluetooth Monitoring and Programming: Monitor and program via Bluetooth, with remote control functionality through a remote on/off switch.
• Versatile Compatibility: Suitable for 12V or 24V systems and compatible with both lead acid and lithium batteries.
• Parallel Connection: Models available up to 400W with unlimited units connectable in parallel to increase output power.
• High Temperature Resistance: Operates at full rated output up to 40°C, suitable for temperatures up to 55°C.

Bluetooth Smart Enabled

Any Bluetooth-enabled smartphone, tablet, or device can:

• Monitor the charger.
• Change settings.
• Update the charger when new software features are available.

Fully Programmable

• Battery Charge Algorithm: Configurable or fixed output.
• Smart Alternator Compatibility: Includes an engine running detection mechanism.

Adaptive 3-Stage Charge Algorithm: Bulk – Absorption – Float

• Lead Acid Batteries: Automatically adjusts absorption time to prevent overcharging during shallow discharges and ensures complete recharge after deep discharges.
• Lithium Batteries: Fixed absorption time of 2 hours by default.
• Alternative Option: Fixed output voltage can be selected.

Remote On-Off

A remote on/off switch or relay contact can be connected to a two-pole connector. Alternatively:

• H Terminal (Right): Can be switched to battery plus.
• L Terminal (Left): Can be switched to battery minus or the chassis of a vehicle.

Additional Features

• Short Circuit Proof: All models are protected and can be paralleled to increase output current.
• High Temperature Protected: Output current reduces at high ambient temperatures.
• IP43 Protection: Ensured when installed with screw terminals oriented downwards.
• Screw Terminals: Installation requires no special tools.

Compatibility

Ideal for vehicles with a smart alternator (Euro 5 and Euro 6 engines). The built-in engine shutdown detection prevents unwanted discharge of the starter battery when the engine is not running.

Product Details

• Selling Unit: EACH
• Model No: ORION-Tr Smart 24/12-30A (360W)
• Inventory Code: 64900-446SC
• Original Brand: Victron Energy ORI241236120
• Voltage: 24V
• Size: 360W
• Dimensions:
  • Width: 130mm
  • Height: 186mm
  • Length/Breadth/Depth: 70mm
• Weight: 1.6kg
