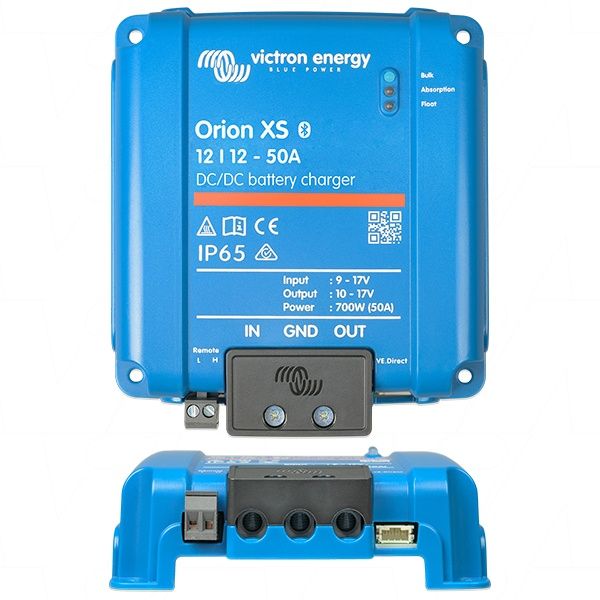

Victron Energy ORION XS 12/12-50A

Orion XS 12/12-50A DC-DC Battery Charger

Engineered from the ground up, the Orion XS redefines adaptive DC-DC charging. Designed for use in dual battery systems charged with an intelligent alternator, this device ensures top-tier performance while guaranteeing the safety of your system.

Key Features:

• Fully configurable
  Precisely set the input and output current with simple controls. This helps protect alternators against overloading and ensures proper charging of the service battery, especially with intelligent alternators.

• Engine shutdown detection
  Built-in functionality ensures the charger only draws power when the engine is running, making it compatible with smart alternators commonly found in Euro 5 & Euro 6 engines.

• Intelligent charge algorithms
  Includes customizable charging algorithms and 8 battery preset modes. For lead-acid batteries, these settings ensure optimal absorption times for both shallow and deep discharges.

• Efficient cooling
  Innovative aluminium circuit board cooling technology delivers an impressive 98% efficiency without the need for fans. The device operates at full capacity up to 40°C.

• Parallel to increase output current
  Multiple Orion XS devices can be connected in parallel, allowing you to scale the output current to meet your system’s requirements.

• Complete electronic protection
  Equipped with overload, short circuit, and excessive temperature protection. The charger automatically reduces output power when the maximum product temperature is reached.

• Low temperature shutdown & undervoltage protection
  To prevent damage to lithium batteries, the charger shuts off automatically at low temperatures and when the input voltage drops below a user-configurable lockout value. This protects the starter battery from deep discharge.

• Dust & waterproof
  Designed to withstand dust and water pollution, the Orion XS boasts an IP65 classification.

Additional Benefits:

• Works with VictronConnect: Offers full remote monitoring and control capabilities, giving you complete command of your device and system.
• Remote monitoring optional: Stay in charge of your system, no matter where you are.

Product Specifications:

• Selling Unit: EACH
• Model No: ORION XS 12/12-50A
• Inventory Code: 64900-853
• Brand: Victron Energy
• Original Brand: Victron Energy ORI121217040
• Description: Adaptive DC to DC Charger 12V-12V 50A for use in Dual Battery Systems charged with an Intelligent Alternator ORI121217040
• Application: Dual Battery Systems
• Voltage: 12V
• Size: 600W
• Width: 123.1mm
• Height: 137.3mm
• Depth: 40mm
• Weight: 330g

The Orion XS is the perfect choice for those seeking a reliable, efficient, and highly configurable DC-DC charger for dual battery systems. With its advanced features and robust design, it ensures optimal performance and safety across a wide range of applications.
