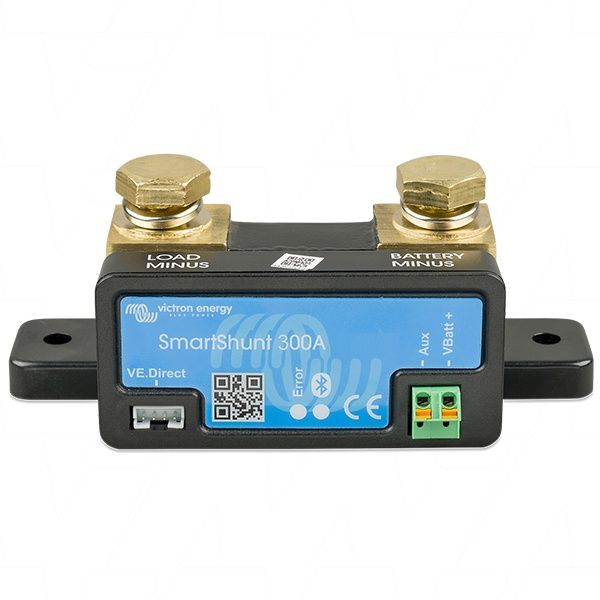

Victron Energy Smart Shunt 300A/50mV

The Smart Battery Shunt

The SmartShunt is an all-in-one battery monitor, designed without a display. Instead, your phone acts as the display.

• Convenient Monitoring:
  The SmartShunt connects via Bluetooth to the VictronConnect App on your phone or tablet, allowing you to easily access all monitored battery parameters, including:
  • State of charge
  • Time to go
  • Historical information
  • Much more

Alternatively, the SmartShunt can be connected to a GX device using a VE.Direct cable.

• Clutter-Free Solution:
  The SmartShunt is an excellent alternative to the BMV battery monitor, especially for systems requiring battery monitoring with less wiring and clutter.

Additional Features

The SmartShunt includes:

• Bluetooth connectivity
• VE.Direct port
• A connection for monitoring a second battery, midpoint monitoring, or a temperature sensor

Differences Compared to BMV712 Battery Monitor

• No programmable visual and audible alarm
• No programmable relay

Specifications

• Supply voltage range: 6.5 - 70 VDC
• Current draw: < 1mA
• Input voltage range (auxiliary battery): 6.5 - 70 VDC
• Battery capacity: 1 - 9999 Ah
• Operating temperature range: -40 to +50°C (-40 to 120°F)
• IP Rating: IP21
• Measures voltage of second battery, temperature, or midpoint: Yes
• Temperature measurement range: -20 to +50°C
• VE.Direct communication port: Yes

Product Details

• Selling Unit: EACH
• Model No: Smart Shunt 300A/50mV
• Inventory Code: 64900-541S3
• Brand: Victron Energy
• Original Brand: Victron Energy SHU050130050
• Description: Smart Shunt 300A/50mV Battery Monitor
• Size: 300A
• Dimensions:
  • Width: 120mm
  • Height: 44mm
  • Length / Breadth / Depth: 43.7mm
