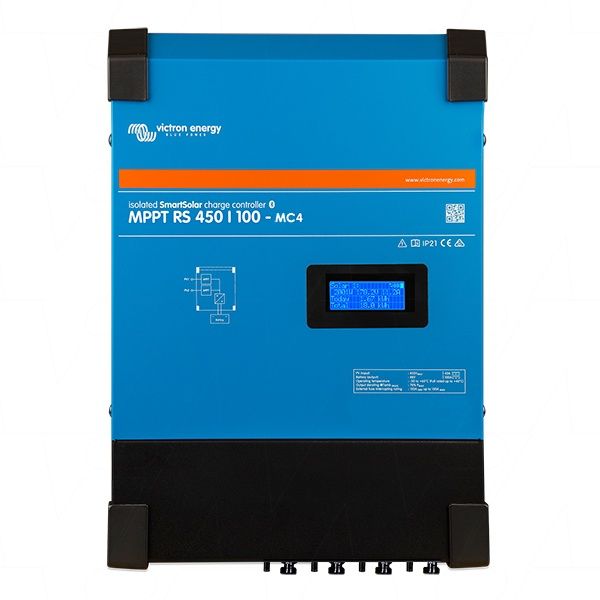

Victron Energy SmartSolar MPPT RS 450/100-MC4

Ultra-fast Maximum Power Point Tracking (MPPT) Solar Charge Controller

The MPPT RS SmartSolar is a 48V Solar charge controller with up to 450VDC PV input and either 100A or 200A output. It is ideal for both on-grid and off-grid solar applications where maximum battery charging power is required.

Key Features

• Multiple independent MPPT tracking inputs
  With multiple MPPT trackers, you can optimize your solar panel design for maximum performance tailored to your specific location.

• Isolated PV connections for additional safety
  Full galvanic isolation between PV and battery connections ensures enhanced system safety.

• Wide MPPT voltage range
  Operates within an 80 - 450 VDC PV range, with a 120VDC PV startup voltage.

• Lightweight, efficient, and quiet
  Utilizing high-frequency technology and a new design, this charger weighs only 7.9 kg for the 100A model. It boasts excellent efficiency, low standby power, and quiet operation.

• Display and Bluetooth
  The display provides real-time information on battery and controller parameters. You can also access these parameters and configure settings via a Bluetooth-enabled smartphone or device using Victron Connect.

• PV Isolation resistance monitoring
  Continuously monitors the PV array to detect faults, ensuring peace of mind when operating at higher voltages.

• VE.Can and VE.Direct port
  Enables connection to a GX device for system monitoring, data logging, and remote firmware updates. The VE.Can port allows up to 25 units to connect in parallel and synchronize charging.

• I/O Connections
  Includes programmable relay, temperature sensor, auxiliary, digital input, and voltage sensor connections. The remote input is compatible with the Victron small BMS and other BMS systems with an allow-to-charge signal.

Package Includes

• 450V 100A Smart Solar MPPT RS High Voltage Solar Charge Controller with MC4 termination.

Product Details

• Selling Unit: EACH
• Model No: SmartSolar MPPT RS 450/100-MC4
• Inventory Code: 64900-647A
• Brand: Victron Energy
• Original Brand: Victron Energy SCC145110510
• Description: 450V 100A CAN-bus MC4 Smart Solar High Voltage Charge Controller MPPT RS Type SCC145110510
• Application: Automotive/Marine/RV, Auxiliary Battery Banks, Off-Grid & Self Consumption Solar, UPS
• Voltage: 450V
• Size: 100A
• Dimensions (W x H x D): 313mm x 440mm x 126mm
• Weight: 7.9kg

This high-performance charge controller is a reliable and efficient solution for various solar applications, ensuring optimal energy conversion and system safety.
