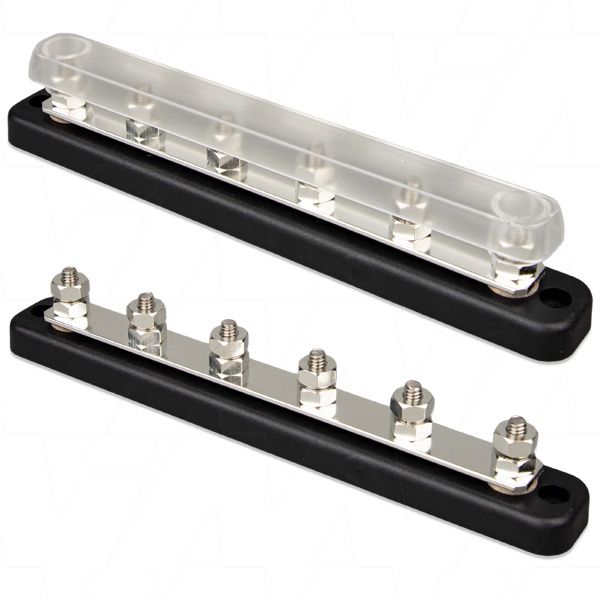

Victron Energy VBB115060020 Busbar 150A 6P +cover
$57.00
4 payments of $14.25 with
Price incl. GST (10%) $5.18
In stock: 2 available
1
Save this product for later
Victron Energy VBB115060020 Busbar 150A 6P +cover
Product Details
Brand: Victron Energy
Weight: 0.27 kg
Busbar 150A with Cover
Key Specifications:
- Max. Current: 150A
- Max. Voltage: 70 VDC
- Terminal Diameter: 6.35mm
- Terminal Height: 17mm
- Terminal Material: Stainless steel
- Hex Nut Material: Tin-plated copper
- Recommended Torque: 7 N·m / 60 lbf·inch
- Busbar Strip Material: Tin-plated copper (1.4 x 18 mm)
- Base Material: ABS, black, UL 94 V-0
- Cover Material: Clear Polycarbonate, UL 94 HB
- Weight: 270 g
- Dimensions (H x W x D): 45 x 231.7 x 31.8 mm
This Victron Energy Busbar is designed to handle a maximum current of 150A and a voltage of 70 VDC. It features durable components, including stainless steel terminals, tin-plated copper hex nuts, and a tin-plated copper busbar strip. The base is made from ABS material with a fire-retardant rating of UL 94 V-0, while the clear cover is crafted from polycarbonate with a rating of UL 94 HB for added safety and visibility.
Compact and lightweight at 270g, this busbar ensures reliability and efficiency in your power distribution system. Its dimensions of 45 x 231.7 x 31.8 mm make it a practical choice for various applications.
Product Details
| Selling Unit | EACH |
|---|---|
| Model No | VBB115060020 |
| Inventory Code | 64900-6266P |
| Brand |  |
| Original Brand | Victron Energy VBB115060020 |
| Description | Busbar 150A 6P +cover |
| Width | 231.7mm |
| Height | 45mm |
| Length / Breadth / Depth | 31.8mm |
| Weight | 270g |
