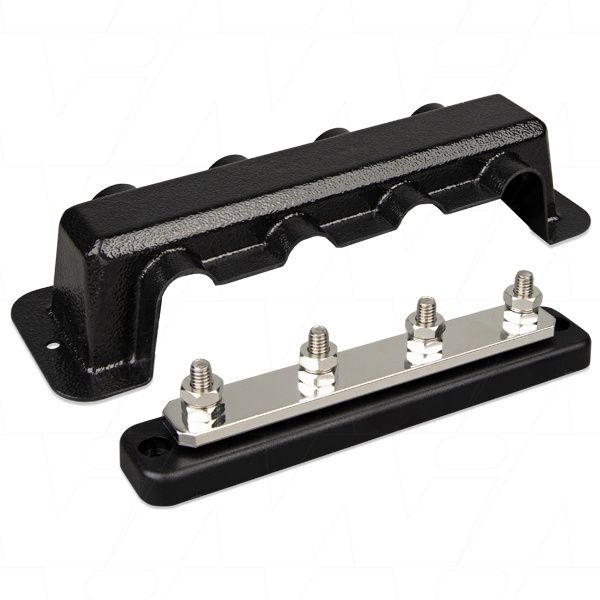

Victron Energy VBB125040010 Busbar 250A 4P +cover

Busbar 250 A with cover

Key Specifications:

• Max. current: 250A
• Max. Voltage: 70 VDC
• Terminal diameter: 8.0mm
• Terminal height: 17mm
• Terminal material: Stainless steel
• Hex nut material: Tin-plated copper
• Recommended torque: 13 N·m / 110 lbf·inch
• Busbar strip material: Tin-plated copper (5 x 24mm)
• Base material: ABS, black, UL 94 V-0
• Cover material: ABS, black, UL 94 V-2
• Weight: 450g
• Dimensions (HxWxD): 48 x 237 x 70 mm

Product Details:

• Selling Unit: EACH
• Model No: VBB125040010
• Inventory Code: 64900-627
• Original Brand: Victron Energy VBB125040010
• Description: Busbar 250A 4P +cover
• Dimensions:
  • Width: 237mm
  • Height: 48mm
  • Length / Breadth / Depth: 70mm
• Weight: 450g

This Victron Energy Busbar features a robust design with high-quality materials, including stainless steel terminals and tin-plated copper hex nuts for durability and reliable performance. The busbar is encased in a black ABS cover, rated UL 94 V-2, ensuring safety and protection. With a maximum current of 250A and voltage of 70 VDC, it is ideal for high-power applications.
