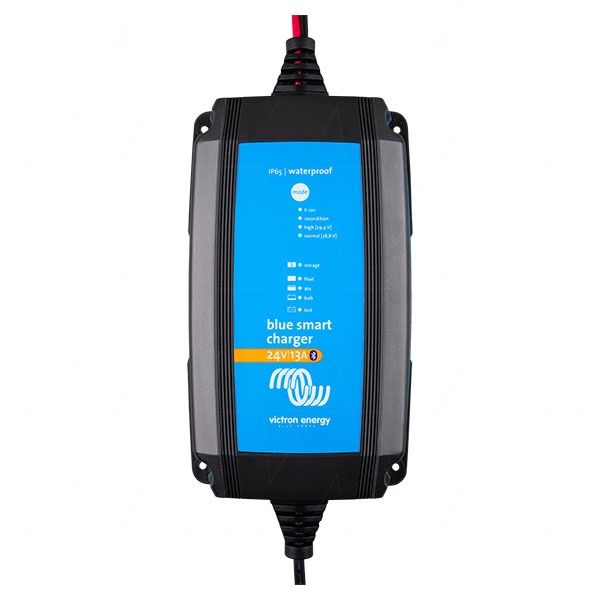

Victron Energy VECIP65-24/13 Blue Smart IP65 SLA/LiFePO4 charger 24V 13A

Overview

The Blue Smart IP65 Charger is a professional-grade battery charger equipped with built-in Bluetooth technology. It is versatile and can be used on devices in workshops, motor vehicles, classic cars, motorbikes, boats, and camper-vans.

Key Features

• Durability: Water, dust, and chemical resistant.
• Efficiency: Seven-step smart charge algorithm with up to 95% efficiency.
• Battery Compatibility: Pre-set charge algorithms optimized for common Lead Acid and Lithium Phosphate batteries.
• Customizable Settings: "Expert Mode" allows users to adjust settings to match battery manufacturer specifications.
• Reliability: Low thermal stress on electrical components ensures long-term durability.
• Battery Recovery: Recovers fully discharged ‘dead’ batteries and partially reverses sulfation.
• Cold Performance: Operates effectively in temperatures as low as -30°C.
• Power Supply Mode: Can be used as a power supply for devices.
• Battery Life Enhancements: Includes several features to prolong battery life.
• Low Power Mode: Ideal for charging smaller batteries.
• LiFePO4 Mode: Features a specific charging algorithm with under-voltage protection.
• Bluetooth Smart Integration: Setup, configure, and monitor voltage and current via Bluetooth Smart.
• Historical Charge Data: View detailed charge cycle history for connected batteries.
• Safety: Reverse polarity, short circuit, and over-temperature protection.
• Operating Temperature Range: -30°C to +50°C.
• Bluetooth App: Power supply mode accessible via the BluetoothSmart app.

Smart 7-Step Charging Program

The seven-step charging algorithm optimizes battery performance, health, and longevity. Pre-set algorithms are included for common Lead Acid and Lithium batteries. For specific manufacturer settings, the Expert Mode allows adjustments to all parameters and time limits.

Deep Discharge Recovery

Unlike other chargers, the Blue Smart IP65 Charger can attempt to recharge deeply-discharged batteries by force-feeding them with a low current. Once sufficient voltage is achieved, normal charging resumes.

Easy Battery Connection

The charger is supplied with Alligator clips and M8 eyelets, allowing for easy connection to the battery. It can also be left permanently connected if desired.

Remote Monitoring

Built-in Bluetooth enables users to check the status of the charger and battery on a smartphone, tablet, or laptop. All settings can be configured using the VictronConnect app.

VictronConnect Features

• Program and configure the charger.
• Access live status updates and historical information.
• View data from the last 40 charge cycles, including start/end voltages, time spent in each charge cycle, amp-hours charged, completion status, and charge profiles used.

The MODE Button

The charger can be operated without Bluetooth using the MODE button, which provides access to all charging programs. For example:

• Switching to low current mode: Press the MODE button for 3 seconds.
• The MODE LED will blink to indicate activation.
• Low current mode remains active until the MODE button is pressed again for 3 seconds.

Package Includes

• 24V 13A Charger (AU/NZ Plug)
• Lead with Alligator Clamps
• Lead with M8 Eyelets

Product Details

• Selling Unit: EACH
• Model No: VECIP65-24/13
• Inventory Code: 64900-631
• Original Brand: Victron Energy BPC241331014
• Chemistry: Lithium Iron Phosphate / Lead Acid (LiFePO4/SLA)
• Voltage: 24V
• Termination: M8, Alligator
• Size: 13A
• Dimensions:
  • Width: 140mm
  • Height: 75mm
  • Length/Depth: 240mm
• Weight: 1.9kg

This charger is a reliable, efficient, and versatile solution for maintaining and extending the life of your batteries, making it an excellent choice for both professional and personal use.
