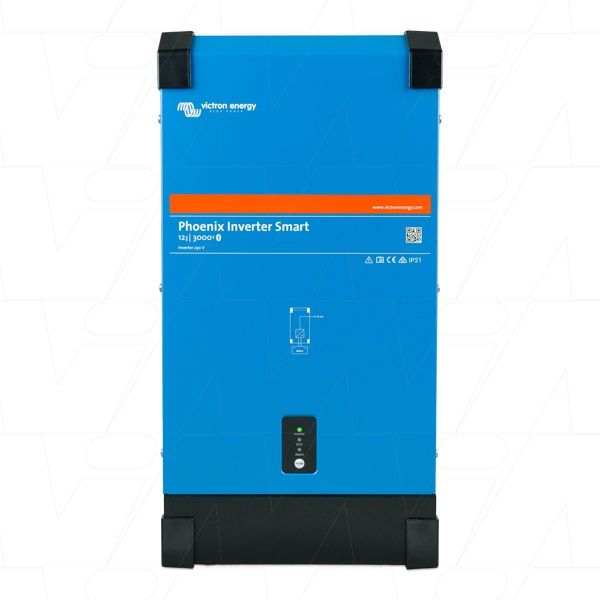

Victron Energy VPSINV-12/3000 Phoenix Smart Inverter

Victron Energy VPSINV-12/3000 Phoenix Smart Inverter
Specifications:

• Input: 9.3-17VDC
• Output: 240VAC @ 3000VA
• Model: PIN122300000
• Rating: 12V 3000VA

Bluetooth Built-in

Fully configurable using a tablet or smartphone.

Key Features:

• Low battery voltage alarm
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: Load-dependent cut-off level
• Output voltage: 210 - 245V
• Frequency: 50 Hz or 60 Hz
• ECO mode: On/off and ECO mode sense level
• Alarm relay

Monitoring Capabilities:

• Monitor: In- and output voltage, load, and alarms.
• VE.Direct communication port:
  • Connect to a computer (requires VE.Direct to USB interface cable) for configuration and monitoring of the same parameters.

Proven Reliability

The full bridge plus toroidal transformer topology ensures long-term reliability.

• Protection:
  • Short circuit proof
  • Overheat protection due to overload or high ambient temperature

High Start-Up Power

Essential for starting loads such as power converters for LED lamps, halogen lamps, or electric tools.

ECO Mode

When activated:

• The inverter switches to standby when the load decreases below a preset value.
• While in standby, it switches on briefly every 2.5 seconds (adjustable).
• If the load exceeds the preset level, the inverter remains on.

Remote On/Off Functionality

• Connect a remote on/off switch or relay contact to a two-pole connector.
• Alternatively:
  • The H terminal (left) can be switched to battery plus.
  • The L terminal (right) can be switched to battery minus (or vehicle chassis).

LED Diagnosis

Refer to the manual for a detailed description.

Automatic Transfer Switch

To transfer the load to another AC source:

• Recommended for low power inverters: Filax Automatic Transfer Switch
  • Features a very short switchover time (less than 20 milliseconds), ensuring uninterrupted operation for computers and other electronic equipment.
• Alternatively, use a MultiPlus with a built-in transfer switch.
