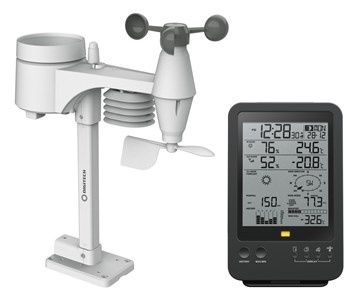

XC0432 WEATHER STN FULL W/LESS B+W LCD 917MHZ

The wireless 5-in-1 sensor is designed to provide comprehensive weather data. It includes:

• A self-emptying rain collector for measuring rainfall
• An anemometer for wind speed
• A wind vane for wind direction
• Temperature and humidity sensors

The sensor is fully assembled and calibrated for easy installation. It transmits data using a low-power radio frequency signal (917MHz band) to the main display unit, with a range of up to 150m (line of sight).

Main Display Features

The main display unit showcases all weather data received from the 5-in-1 sensor. It stores data for up to 24 hours, allowing users to monitor and analyze weather patterns. Key features include:

• HI/LO Alert alarm: Notifies users when high or low weather criteria are met.
• Barometric pressure records: Used to forecast weather and warn of storms.
• Day and date stamps: Corresponding to maximum and minimum records for each weather detail.

Rainfall and Wind Analysis

The system provides detailed analyses, including:

• Rainfall rate: Daily, weekly, and monthly records.
• Wind-speed: Expressed in Beaufort Scale.
• Additional readings such as wind-chill, heat index, dew point, and comfort level.

Features

Key Weather Station Features:

• Indoor & Outdoor Temperature (°C or °F)
• Min/Max Records
• Indoor & Outdoor Hygrometer
• Wind Speed (m/s, km/h, mph, or knots)
• Wind Direction
• Wind Chill
• Dew Point
• Heat Index
• Rain Gauge (in or mm)
• Rain Rate
• Barometric Pressure (hPa, inHg, or mmHg)
• Moon Phase
• Time/Date Display
• High/Low Alarms
• 12 Hour Forecast
• Rainfall & Barometer Histogram

Specifications

Transmission Details:

• Frequency: 917MHz
• Power: 917W
• Range: 150m

Measurement Ranges:

• Pressure Range: 54kPa to 110kPa
• Relative Humidity Range: 20% to 90%
• Humidity Accuracy: +/- 5%
• Maximum Rainfall Reading: 9mm
• Outdoor Temperature Scale: -40°C to 65°C
• Wind Speed Range: Up to 180km/h

Display Details:

• Type: LCD
• Height: 165mm
• Width: 90mm
• Backlight: LED Backlit
• Color: Monochrome

Dimensions & Weight:

• Width: 120mm
• Height: 190mm
• Depth: 22mm
• Weight: 370g

Battery Details:

• Transmitter Battery: AA (3 pieces)
• Sensor Battery: AA Alkaline (3 pieces)

Packaging Details:

• Volume: 17.45l
• Weight: 1.62kg
• Length: 39.2cm
• Width: 28.9cm
• Height: 15.4cm

Sensor Dimensions:

• Remote Sensor Width: 343mm
• Remote Sensor Height: 393mm
• Remote Sensor Depth: 136mm

Active Display Area:

• Width: 90mm
• Height: 120mm

This weather station is a reliable and advanced tool for indoor and outdoor weather monitoring.
