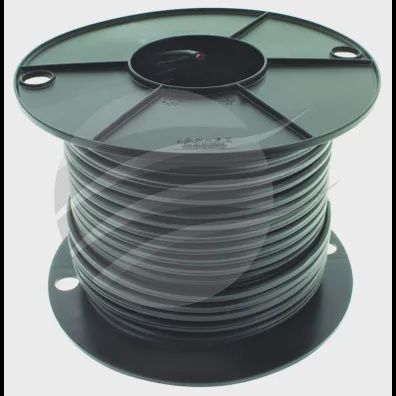

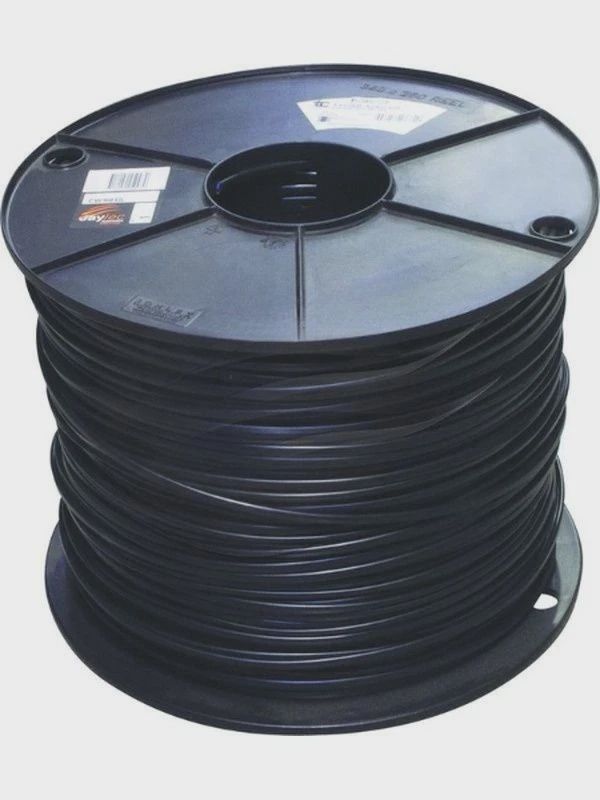

CBL - 4mm TWIN CORE
$3.73
4 payments of $0.93 with
In stock: 420 available
1
Save this product for later
CBL - 4mm TWIN CORE
Product Details
Brand: Tycab
Core Specifications
- Nominal Area: 1.84mm²
- Conductor: Oxygen-free plain copper wire to AS/NZS 1125
- Stranding: 23/0.32
- Core Colours: Red and Black
Insulation and Sheath
- Insulation: V90 PVC to AS/NZS 3808
- Sheath: 5V90 PVC to AS/NZS 3808
- Sheath Colour: Black (for standard auto/marine)
Electrical and Physical Properties
- Current Rating: 22A at 30°C (JASO D609 rating)
- Electrical Resistance: 6.4 ohm/km at 20°C
- Insulation Thickness: 0.4mm
- Sheath Thickness: 0.6mm
- Mass: 6.1kg per 100m
- Nominal Outer Diameter: 3.8mm × 6.3mm (flat twin)
