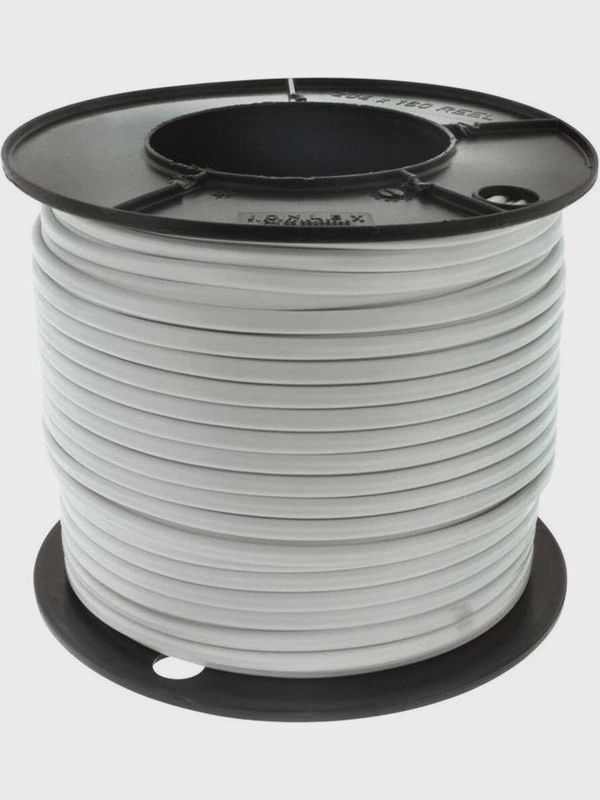

CBL - 4mm TWIN CORE MARINE
$3.73
4 payments of $0.93 with
In stock: 269 available
1
Save this product for later
CBL - 4mm TWIN CORE MARINE
Product Details
Brand: Tycab
Conductor Specifications
- Material: Tinned copper wire (TCW) to AS/NZS 1125
- Stranding: 23 strands of 0.32mm diameter
- Nominal Area: 1.84mm²
Insulation and Sheath
- Core Insulation: V90 PVC to AS/NZS 3808
- Core Colors: Red and Black
- Outer Sheath: 5V90 PVC to AS/NZS 3808
- Sheath Color: White
Performance and Dimensions
- Amp Rating: 22A @ 30°C
- Voltage Rating: Up to 120V DC
- Nominal OD: 3.8mm × 6.3mm
- Electrical Resistance: 6.4Ω/km at 20°C
- Mass: 6.1kg/100m
Applications
- Marine Trailer Wiring
- General Purpose Marine Wiring
- Lighting and Instrumentation
