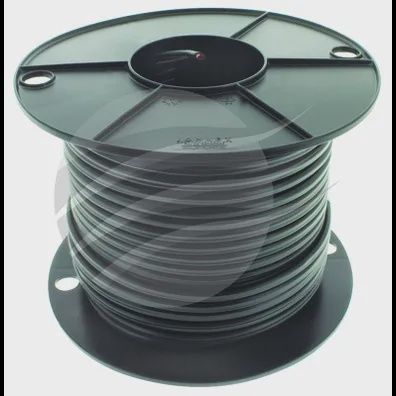

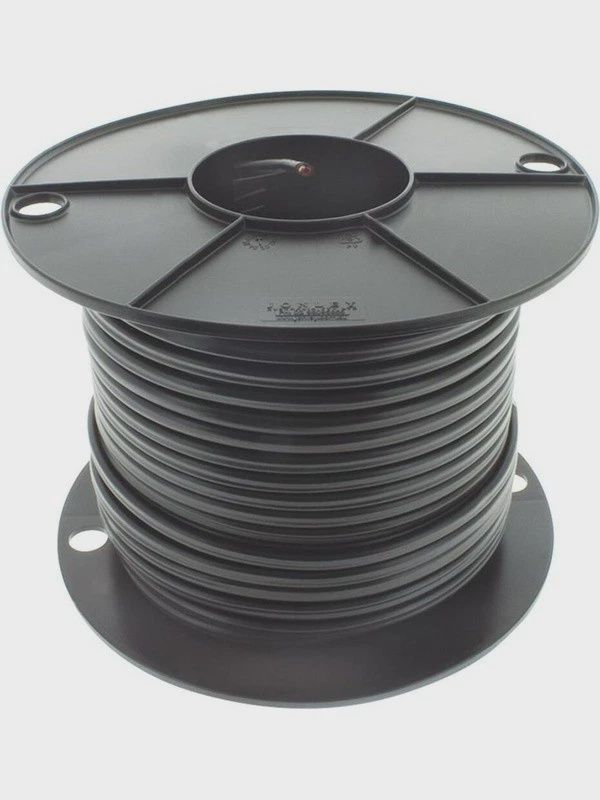

CBL - 5mm TWIN CORE

Core Specifications

• Nominal Area: 2.9 mm²
• Conductor: Oxygen-free plain copper wire to AS/NZS 1125
• Stranding: 36 strands of 0.32 mm diameter wire
• Core Colors: Red and Black
• Insulation: V90 PVC to AS/NZS 3808
• Insulation Thickness: 0.4 mm

Sheath and Overall Cable

• Sheath: 5V90 PVC to AS/NZS 3808
• Sheath Colors: Black with red or black/red
• Sheath Thickness: 0.7 mm
• Nominal Outer Diameter: 4.5 × 7.4 mm
• Mass: 8.8 kg/100 m

Performance and Other Features

• Amp Rating: 29A at 30°C
• Electrical Resistance: 6.4 ohms/km at 20°C
• Application: Primarily used for trailer and automotive wiring
