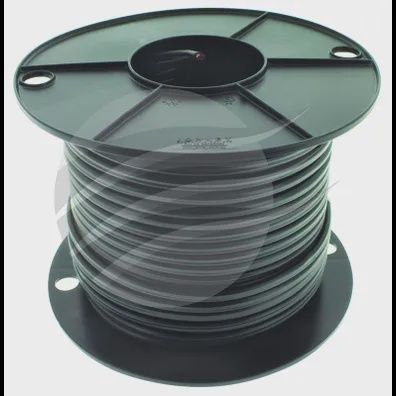

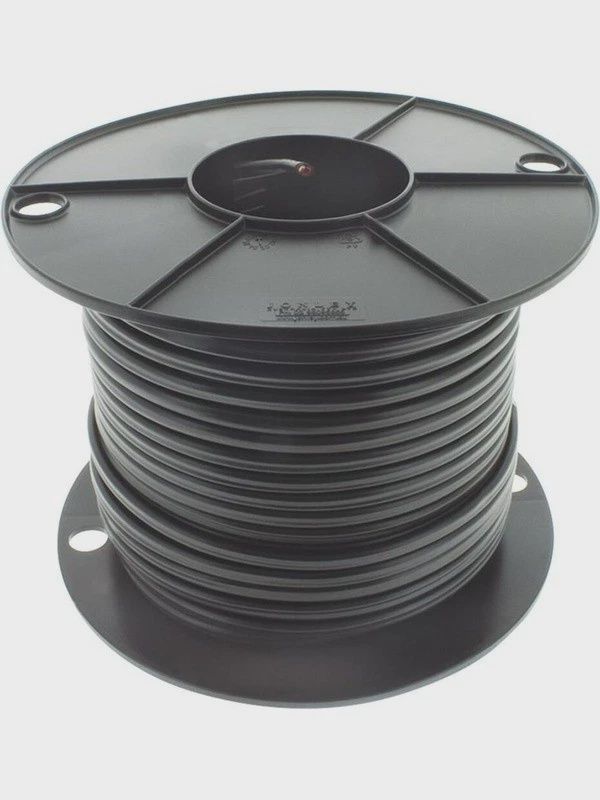

CBL - 6mm TWIN CORE

General Specifications

• Nominal Area: 4.5mm² or 4.59mm²
• Conductor: 57 strands of 0.32mm tinned copper
• Amperage Rating: 38A @ 30°C (subject to derating for multiple cables or higher temperatures)
• Insulation Thickness: 0.6mm
• Sheath Thickness: 0.8mm
• Nominal Outside Diameter: 5.7mm × 9.6mm
• Core Colours: Red and Black
• Sheath Material: 5V90 PVC
• Electrical Resistance: 4.15Ω/km at 20°C
• Mass: 14kg per 100m

Applications

• Automotive wiring
• Trailer wiring
• Marine applications
• Anderson leads
• General purpose DC power applications
