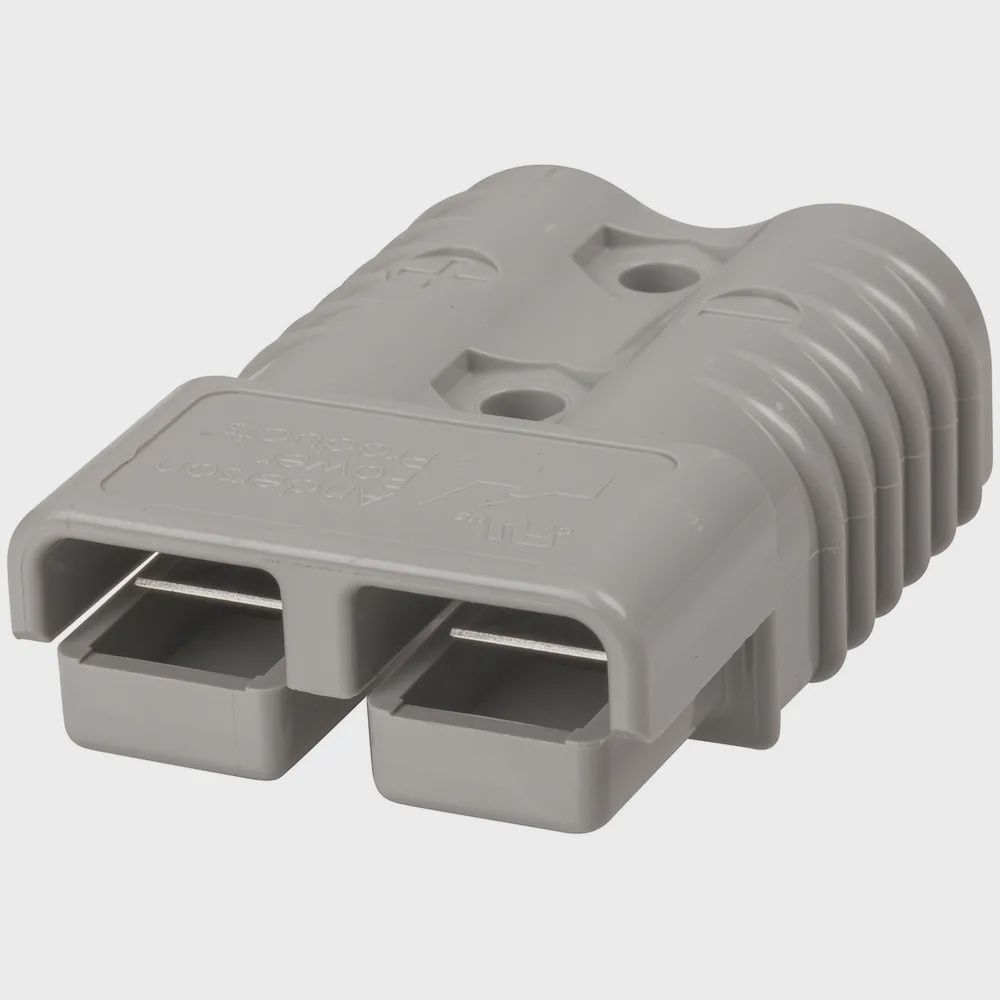

CONN 175A 2POLE GRY 0-1G CONTACTS SB175

Overview

Used widely in both domestic and industry, you'll find this connector in many 4WD applications, boating, automotive, and other industries. Supplied individually with a pair of contacts.

Key Features:

• Contact Wire Size: 53.5mm² (1/0 AWG)
• Max Wire Insulation Diameter: 19mm
• Contact Retention Force: 137kg (300lbs)
• Operating Temperature: -20 to +125 degrees C

Specifications

Electrical Ratings:

• DC Current Rating: 175.0 A
• DC Voltage Rating: 600.0 V

Environmental Specifications:

• Operating Temperature: 125.0 °C

Physical Characteristics:

• Pack Quantity: 1.0 pc
• Device Type: Plug
• Plug or Socket Type: Anderson 175A 2 Pole
• Contacts / Pins: 2.0 pc
• Attachment Method: Crimp
• Case Material: Plastic

Dimensions:

• Packaged Dimensions: 9.0cm (Length) x 5.7cm (Width) x 2.7cm (Height)

This connector is a reliable solution for a variety of applications, ensuring durability and high performance under demanding conditions.
