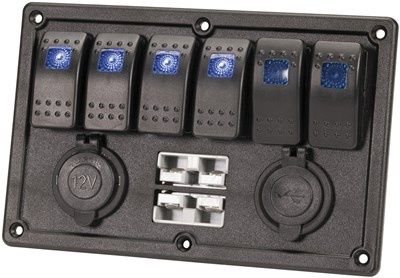

SZ1930 SWITCH PNL 6WAY ROCKER ILLUM BLU

Product Description

This flush-mount switch panel features high-current illuminated rocker switches to control lighting and other power circuits in your boat or vehicle.

In addition:

• Two USB ports provide power to your USB devices.
• A cigarette lighter socket and two 50A battery connectors provide power to 12V devices such as fridges, 12V compressors, handheld spotlights, etc.

The panel comes pre-wired to help make the installation straightforward.

Available options:

• 4-way (SZ1928)
• 6-way (SZ1930)

Features

• 2 x 50A battery connectors
• 2 x USB-A ports with cover
• 6 x 3-pole switches with illumination function
• 12V cigarette socket with cover
• Surface mountable

Specifications

• USB: 3.1A max. (shared)
• Fuse holders: 2 x 15A

Available configurations:

• 4-WAY: SZ1928
• 6-WAY: SZ1930

Technical Specifications

• DC Voltage: 12V, 24V
• DC Voltage Output 1: 2 x 50A battery connectors
• DC Voltage Output 2: 2 x USB-A ports with cover, 3.1A max shared
• DC Voltage Output 3: 1 x 12V cigarette socket with cover
• Length: 120mm
• Width: 185mm
• Depth: 100mm
• Packaged Volume: 4.07L
• Packaged Weight: 0.52kg
• Packaged Length: 26.5cm
• Packaged Width: 16cm
• Packaged Height: 9.6cm
